| Categories | Power Transmission Poles |
|---|---|
| Brand Name: | Milky Way |
| Model Number: | 16m |
| Certification: | ISO//BV |
| Place of Origin: | China |
| MOQ: | one 40HQ |
| Price: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 300 pieces pole per day |
| Delivery Time: | usually 2 weeks after confirming |
| Packaging Details: | as per customer request |
| Tolerance Of Dimension: | +- 2% |
| Wind Resistance: | 3-500km/h |
| Material: | GR50 GR65 S500 S355 |
| Height: | 16m |
| Welding: | Welding confirms with international welding standard of CWB |
| Powder coating: | Pure polyester powder painting, color is optional |
| Design: | Against 8 Grade Of Earthquake |

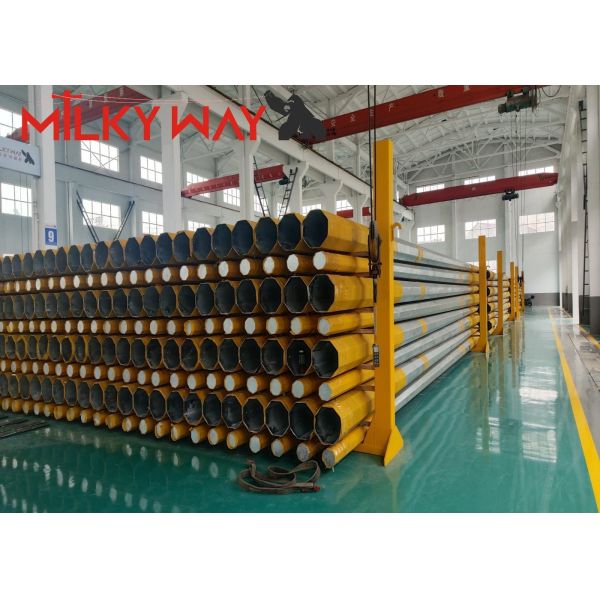

| Product Name: | 16m transmission line steel pole tower & Power Transmission Poles |
| Company Info. |
| Jiangsu milky way steel poles co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Specification
| Item | TIP DIAMETER | BUTT DIAMETER | THICKNESS | Pole Shape |
| (m) | (MM) | (MM) | (MM) | 8 sides |
| 11.8m/5KN | 150 | 355 | 3 | |
| 11.8m/6.5KN | 180 | 400 | 3 | |
| 11.8m/8KN | 190 | 440 | 3 | |
| 11.8m/10KN | 190 | 450 | 3.5 | |
| 11.8m/12.5KN | 220 | 500 | 3.5 | |
| 11.8m/16KN | 230 | 560 | 3.5 | |
| 11.8m/20KN | 240 | 585 | 4 | |
| 11.8m/25KN | 260 | 655 | 4 | |
| 11.8m/32KN | 260 | 660 | 5 | |
| 11.8m/40KN | 260 | 670 | 6 | |
| 16m/5KN | 150 | 375 | 4 | |
| 16m/6.5KN | 180 | 420 | 4 | |
| 16m/8KN | 190 | 460 | 4 | |
| 16m/10KN | 190 | 510 | 4 | |
| 16m/12.5KN | 220 | 525 | 4 | 12 sides |
| 16m/16KN | 230 | 585 | 4 | |
| 16m20KN | 240 | 585 | 5 | |
| 16m/25KN | 260 | 655 | 5 | |
| 16m/32KN | 260 | 670 | 6 |
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take
chaege of the overall managemnt ,especailly the technical managemnt
and quality management .
2. Introducing ISO management ,We are awared ISO 9001:2008
certificate.
3. QC Inpection:It is our company policy that all the finish
product should be inspected by our specialzed QC in every
manufacure steps and beofore every shipment.
| Material | High-quality steel Q235/SS400 from BAOSTEEL Group | |
| Welding Technique | Automatic submerged arc welding | |
| Surface Treatment | Hot dip galvanizing and powder painting | |
| Welding Standard | GB11345 Grade Ⅱ | |
| Thickness of Zinc Coating | ≥ 86um | |
| Adhesive Force of Zinc Coating | GB2694-88 | |
| Anti-wind Capacity | 36.9m/s | |
| Anti-corrosion Lifetime | ≥20 years | |
| Coating Layer | Thickness | ≥100um |
| Adhesive force | GB9286-880 | |
| Hardness | ≥2H | |
| Steel Pole Height Options | 3.5m~15m | |
| Street Lighting Poles Type Options | Conical, polygonal | |
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located
in Wuxi,East of China ,near one of the largest sea port of China
,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles
including the transmission power pole,street light pole,high mast
pole and so on.
We exported to oversea countries since 1991 and our products have
been delivered to more than 70 countries and areas ,including
America,Australia ,Russia ,Germany ,Span,Philippines
,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the
street light pole of Dubai Tower.the high mast pole for Sochi
Winter Olympic Game and so on.
Competitive Advantage:
| 1. Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result. |
| 2. Lowest MOQ: lowest quantity from 1Ton depends on different style . |
| 3. OEM Accepted: We can produce any pole of your design. |
| 4. Good Service: We treat clients as friends. |
| 5. Good Quality: We have very strict quality control system .Good reputation in the market. |
| 6. Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ). |
| 7. Manufacturer Capacity : 300 pieces/day. |
| Best Service: --At Jiangsu Milky Way Steel Poles Co.,Ltd, our #1 priority has always been providing our clients with great quality products and superior Customer service. |
| Quick Lead Time.--We're dedicated to providing the quickest
turnaround times and work Hard to ensure that all of your deadlines are meet. |
| Unbeatable Prices-- We continuously strive to find ways of reducing
our production costs, and passing the savings Over to you! |
| Unbeatable Quality --we always supply good quality also leading products to our VIP customers. |
| Brand Awareness -- The goal of any strong brand is achieve a level
of awareness that instills the idea of quality and value into all of your customers. |
| Special Offers. -- In order to maintain our competitive edge, we
are constantly running special offers on our products, consumer goods, and design services. Contact our sales team to see how we can help you save a lot of money. |
| Special support.-- we have a policy term to support our VIP customers for products also payment. |
|
