| Categories | Rectangular Copper Wire |
|---|---|
| Brand Name: | RVYUAN |
| Model Number: | UEWH |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Place of Origin: | China |
| MOQ: | 10kg |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 7 days |
| Packaging Details: | Spool with carton |
| Shape: | Rectangular |
| Width of conductor: | 2.4mm |
| Unilateral Insulation Layer Thickness (Width): | 0.025mm |
| Thickness of conductor: | 0.5mm |
| Applications: | UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor |
| Thermal Grade: | 220 |
| Key word: | UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

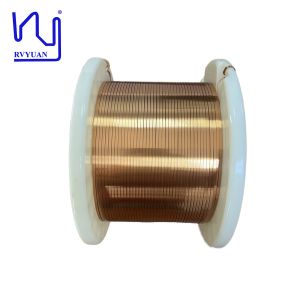

UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor
Enameled rectangular copper wire is an indispensable material in the manufacture of motors and transformers, where reliability and heat resistance are critical. The rectangular design allows for optimal packing density, ensuring more wires fit in a given space, which is essential for maximizing the efficiency of electrical equipment. Our wires are carefully designed for excellent conductivity and very low energy loss, making them the preferred choice of engineers and manufacturers.
Item | Conductor dimension
| Unilateral insulation thickness | Overall dimension
| Dielectric breakdown voltage
| Conductor resistance | ||||
| T | W | T | W | T | W | ||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | |
SPEC | AVE | 0.500 | 2.400 | 0.025 | / | / | / | ||
Max | 0.509 | 2.460 | 0.040 | 0.550 | 0.0550 | 2.500 | 16.090 | ||
Min | 0.491 | 2.340 | 0.010 | 0.700 | |||||
No. 1 | 0.501 | 2.405 | 0.039 | 0.544 | 0.544 | 2.483 | 4.880 |
14.437 | |
| No. 2 | 0.500 | 2.406 | 0.039 | 0.545 | 0.545 | 2.485 | 4.331 | ||
| No. 3 | 0.502 | 2.407 | 0.039 | 0.543 | 0.543 | 2.484 | 3.660 | ||
| No. 4 | 4.515 | ||||||||
| No. 5 | 4.600 | ||||||||
| No. 6 | 4.770 | ||||||||
| No. 7 | 4.440 | ||||||||
| No. 8 | 4.250 | ||||||||
| No. 9 | 3.990 | ||||||||
| No. 10 | 3.750 | ||||||||
Avg | 0.501 | 2.406 | 0.022 | 0.039 | 0.544 | 2.484 | 4.319 | ||
No.of reading | 3 | 3 | 3 | 3 | 3 | 3 | 10 | ||
Min. reading | 0.500 | 2.405 | 0.021 | 0.022 | 0.543 | 2.483 | 3.660 | ||
Max. reading | 0.502 | 2.407 | 0.023 | 0.039 | 0.545 | 2.485 | 4.880 | ||
Range | 0.002 | 0.002 | 0.002 | 0.001 | 0.002 | 0.002 | 1.220 | ||
Result | OK | OK | OK | OK | OK | OK | OK | OK | |
|
