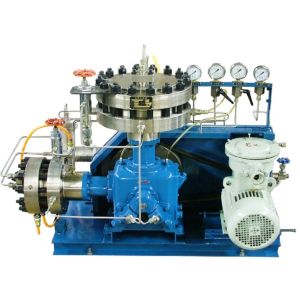

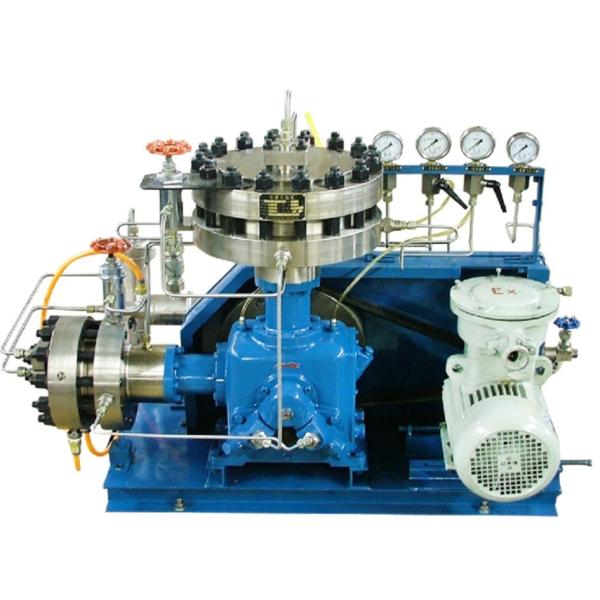

| Categories | Diaphragm Hydrogen Compressor |
|---|---|
| type: | Z-shape Diaphragm compressor |
| configuration: | Other |
| power source: | AC Power |
| place of origin: | Jiangsu, China |
| brand name: | ChunMiao |
| model number: | GZ095 |
| voltage: | Customized |
| dimension(l*w*h): | 1300x770x1300 |
| warranty: | 1 Year |
| machinery test report: | Not Available |
| video outgoing-inspection: | Provided |
| core components: | Other |
| gas type: | Air |
| Weight (KG): | 750 |
| Cooling Method: | WATER COOLED |
| Price: | CN¥20,586.24/pieces >=1 pieces |
| Company Info. |
| Nanjing Weili Electronic Materials Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Model | Volume flow Nm³/h | Inlet pressure MPa | Exhaust pressure MPa | Revolutions rpm | Motor power kW | Cooling water flow m³/h | Dimensions (L×W×H)mm | Weight ton |
GZ095/0/1.5 | 10-110 | 0-1.0 | 1.5 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
GZ095/0/2 | 6-150 | 0-1.5 | 2 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
GZ095/0.3/3 | 14-120 | 0.3-2.5 | 3 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
GZ095/0.4/4 | 14-130 | 0.4-3.5 | 4 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
GZ095/0.8/8 | 11-120 | 0.8-7.0 | 8 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
GZ095/2/20 | 12-120 | 2.0-16.0 | 20 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
GZ095/3/40 | 5-120 | 3.0-35.0 | 40 | 400 | 4-5.5 | ≤0.4 | 1300×770×1300 | 0.75 |
|
