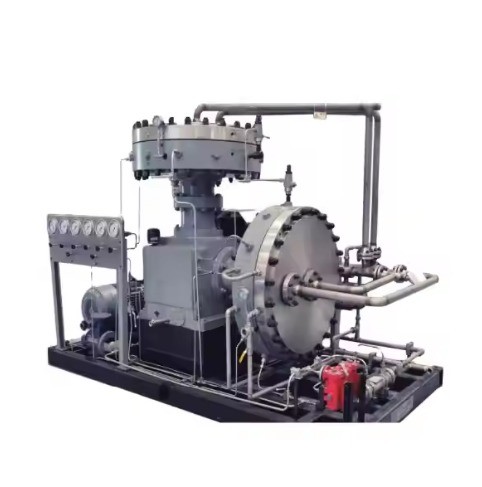

| Categories | Diaphragm Air Compressor |
|---|---|
| type: | Z-shape Diaphragm compressor |
| configuration: | Other |
| power source: | AC Power |
| place of origin: | Jiangsu, China |
| brand name: | ChunMiao |
| model number: | GZ150 |
| voltage: | Customized |
| dimension(l*w*h): | 6090x4236x2200 |
| warranty: | 1 Year |
| machinery test report: | Not Available |
| video outgoing-inspection: | Provided |
| core components: | Other |
| gas type: | Air |
| Weight (KG): | 25000 |
| Cooling Method: | WATER COOLED |
| Price: | CN¥19,140.34/pieces >=1 pieces |
| Company Info. |
| Nanjing Weili Electronic Materials Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Model | Volume flow Nm³/h | Inlet pressure MPa | Exhaust pressure MPa | Revolutions rpm | Motor power kW | Cooling water flow m³/h | Dimensions (L×W×H)mm | Weight ton |
GZ150/1.3/20 | 40-1100 | 1.3-16.0 | 20 | 360 | 22-37 | ≤3.2 | 2600×1630×2550 | 6 |
GZ150/10/80 | 90-500 | 10.0-40.0 | 80 | 360 | 22-37 | ≤3.2 | 2600×1630×2550 | 6 |
|
