| Categories | Between Series RF Adapter |
|---|---|
| Brand Name: | ELT |
| Model Number: | TNC/MCX-KYK |
| Certification: | Rohs，ISO Certificates |
| Place of Origin: | Xi'an, China |
| MOQ: | 50 |
| Price: | Depending on the quantity |
| Payment Terms: | T/T or LC |
| Supply Ability: | As requirements |
| Delivery Time: | 5-7 working days for stocked quantity |
| Packaging Details: | 1pcs/plastic bag;10bags/carton |
| Product Name: | TNC Female to MCX Female Adapter |
| Center Contact: | Copper Alloy， Gold Plated |
| Shell: | Copper Alloy， Nicle Plated |
| Mount Method: | Flange Mount |
| Imdepence: | 50 Ohm |
| Rated Voltage: | 250V |
| DWV: | 750V |
| Insulation Resistance: | 5000Ohm |
| Frequency: | DC~6GHz |
| Insulation Dielectric: | PTFE |
| Temperature Range: | -55℃~+125℃ |
| Company Info. |
| Xi'an Elite Electronic Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TNC to MCX adapter is designed to connect TNC connectors with MCX connectors. This adapter is widely used in scenarios where devices with TNC interfaces need to be connected to devices with MCX interfaces. It is commonly utilized in fields such as wireless communication, test equipment, and RF instruments, where conversion between different interfaces is frequently required. Elite Electronic have the TNC to MCX adapters with the flange mount,bulkhead mount..., also we have some waterproof Model.

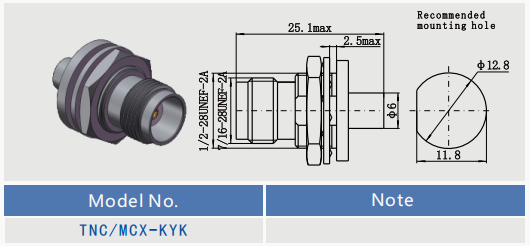

Outline Dimension of TNC to MCX Female to Female Bulkhead Mount
Adapters TNC/MCX-KYK:
Outline Dimension of TNC to MCX Jack to Jack Bulkhead Mount Adapters TNC/MCX-KYK1:
TNC adapters is widely used in the fields of aviation,aerospace, radar, microwave
communication and digital communication.
Packaging:
The TNC Jack to MCX Jack Bulkhead Mount Adapters is carefully packaged in a carton to ensure safe transportation. The connector is
secured in place with protective foam padding to prevent any damage
during shipping. The box is labeled with the product name and
specifications for easy identification.
Shipping:
We offer fast and reliable shipping for the TNC Female to MCX Female Bulkhead Mount Adapters . We will ship the stocked connectors within 5-7 business days.
After shipping, you will receive a tracking number of your
shipment.
|
