| Categories | Leather Testing Machine |
|---|---|
| Brand Name: | GC |
| Model Number: | GC-NM-A |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiated |
| Payment Terms: | TT |
| Supply Ability: | 100 Sets |
| Delivery Time: | In stock |
| Packaging Details: | Wooden package |
| Model NO.: | GC-NM-A |
| Max Diameter of Workpiece: | <500mm |
| Mass Scope of Workpiece: | <900kg |
| Type: | Abrasion Resistance Tester |
| Maxcapacity: | >1000KN |
| Accuracy Grade: | 0.5 |
| Load Way: | Electronic Load |
| Loading Method: | Dynamic Load |
| Control: | Manual Control |
| Weight: | 0-100Kg |
| Power Source: | AC110V |
| Roller Length: | 460 mm |
| Roller Speed: | 40rpm |
| Wear Stroke: | 40mm(20 mm) |
| Transport Package: | Wooden Package |
| Specification: | 95*66*31CM |
| Trademark: | GC |
| Origin: | China |
| Package Gross Weight: | 50.000kg |
| Company Info. |
| Guangdong Guangce Instrument Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

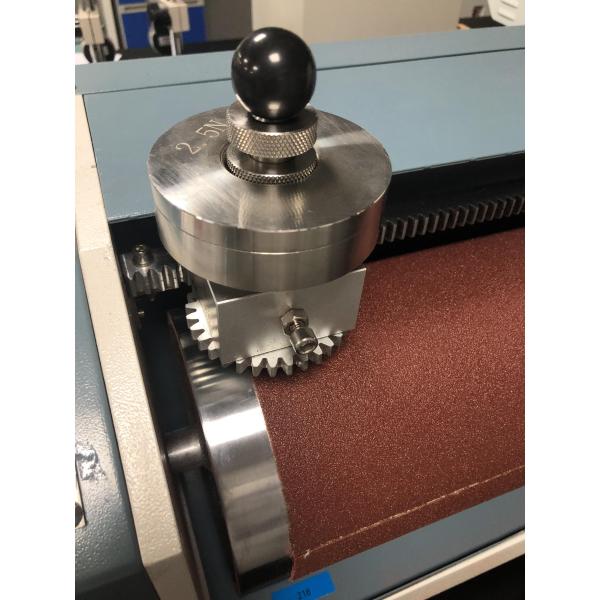

DIN Abrasion Resistance Tester abrasion test machine for lab use
The DIN Abrasion Resistance tester works by rubbing a rotating wheel, typically made of specified abrasive materials like sandpaper or a diamond disc, against a test sample at a constant speed. The abrasion resistance is measured by comparing the condition of the test sample before and after the abrasion test. The number of cycles or rotations required for a specific level of wear indicates the material's durability under simulated wear conditions.
| Roller diameter | φ150mm |
| Roller length | 460 mm |
| Roller speed | 40rpm |
| Wear stroke | 40mm(20 mm) |
| Wear rate | 0.32 m/S |
| Inclination | 3° |
| Test piece diameter | φ16 mm |
| Thickness | 6~15 mm |
| Test load | 2.5N,5N |
| Fixture lateral displacement | 4.2 mm/roller per turn |
| Volume | 95*66*31cm |
| Power supply | 220V 50HZ |
| Weight | About 50kg |
| Dimension | 95*66*31CM |
| Package | Wooden Package |
