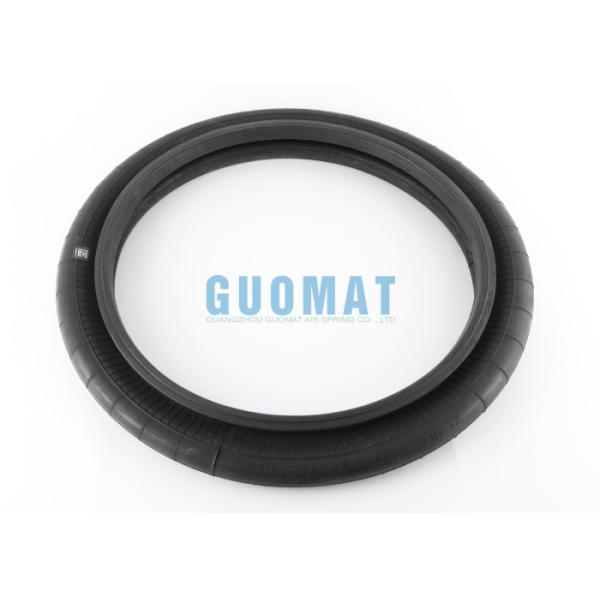

FS 1710-12 RS Contitech Single Convoluted Air Shock 45mm Bolts Flange Air Spring With Bead Rings

FS 1710-12 RS Contitech Single Convoluted Air Shock 45mm Bolts Flange Air Spring With Bead Rings

Product Description

Max Inflation Pressure: 120 psi
Series: RS
Bellows Type: Single Convoluted
Weight: 19.2 lbs.

Contitech Part Number: FS1710-12

Contitech Part Number: FS 1710-12

Contitech Part Number: FS1710-12 RS

Contitech Part Number: FS 1710-12 RS

Contitech Part Number: FS1710-12 RS 75383

Contitech Part Number: FS 1710-12 RS 75383

Firestone Part Number: W01-358-7727

Firestone Part Number: W01 358 7727

Firestone Part Number: W013587727

Firestone Part Number: WO1-358-7727

Firestone Part Number: WO1 358 7727

Firestone Part Number: WO13587727

Contitech FS1710-12 Detailed Technical Data

Maximum height: 177mm
Minimum height: 55mm
Design height: 125mm
Flange ring diameter: 517mm
Threaded holes: 24pcsXM10
Center distance between threaded holes: 482mm
The rubber bellows max.outer diameter: 585mm
Screw thread height: 28.5mm
M10: max.40Nm

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
