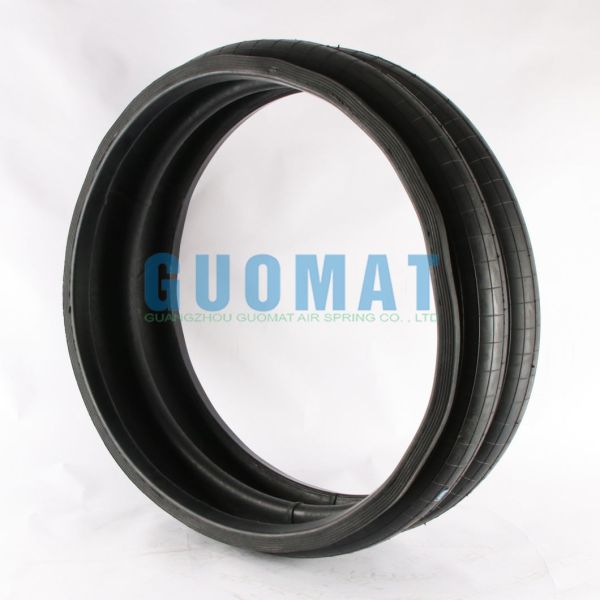

W01-R58-4044 Firestone Rubber Air Spring 12X2 Air Bellows For Agricultural Machinery

W01-R58-4044 Firestone Rubber Air Spring 12X2 Air Bellows For Agricultural Machinery

Product Details

Brand: GUOMAT

Model No.: 2B12X2R

Warranty: 12 Months Warranty

Material: Rubber

MOQ: 5pcs

Color: Black

Convolutions: 2

Type: With Waist Ring

Cross Numbers:

Firestone Style: 12X2

Firestone Number: W01-R58-4044 / WO1-R58-4044

Firestone Number: W01 R58 4044 / WO1 R58 4044

Firestone Number: W01R584044 / WO1R584044

Continental ContiTech Number: FD412-18 VP

Continental ContiTech Number: FD 412-18 VP

Continental ContiTech Order Number: 66318

Goodyear Flex Number: 578-92-3-2452

Goodyear Flex Number: 578 92 3 2452

Goodyear Flex Number: 5789232452

Parker Type: 12X2

Why are Air Springs Made of Rubber?

• Excellent sealing

This is the most important role of rubber in air springs. The core of air springs is to use the elasticity of compressed air, so air tightness is crucial. Rubber has high elasticity and flexibility, and can fit tightly on metal parts (such as pistons and end covers) to form a reliable sealing interface. Even if it is repeatedly deformed (compressed and stretched) during operation, rubber can maintain a good sealing effect to prevent high-pressure air leakage. This is difficult to match with metal or hard plastic.

• Excellent flexibility and elasticity

Air springs need to deform significantly and repeatedly to adapt to load changes and road impact. Rubber has extremely high elastic deformation capacity (elongation can reach hundreds or even thousands of percent), and can easily withstand frequent compression, stretching and bending deformation. The elastic modulus of rubber is relatively low and adjustable, which can provide the required flexibility and effectively absorb and buffer vibration and impact.

• Excellent fatigue resistance

During vehicle driving, air springs may undergo several or even dozens of compression/rebound cycles per second. Rubber has excellent flex fatigue resistance and can maintain performance in millions or even tens of millions of dynamic deformation cycles without cracking or failure.

• Good mechanical strength and toughness:

Rubber materials (especially high-performance rubber used for air springs) have sufficient tensile strength, tear strength and wear resistance, and can withstand the stress generated by internal air pressure, installation stress, and external forces such as friction and scratching that may be encountered during use, ensuring the durability of the airbag.

• Designability and processability

Rubber formulas can be adjusted according to specific needs (such as the selection or combination of natural rubber, synthetic rubber such as chloroprene rubber, butyl rubber, EPDM, etc.) to optimize its weather resistance (anti-ozone, UV), temperature resistance, oil resistance, damping characteristics, etc. Rubber can be formed into complex airbag shapes (such as bladder type, sleeve type, membrane type) through molding, vulcanization and other processes to meet the needs of different structural designs.

• Damping characteristics

The rubber material itself has a certain internal friction, which can absorb part of the energy during the deformation process and dissipate it as heat energy. This provides the air spring with a certain inherent damping, which helps to suppress spring resonance and rapidly decay vibrations. Although the main damping function is usually undertaken by the shock absorber, the damping of the rubber airbag itself is also a useful supplement.

Why not Choose Other Materials?

Product Images
