| Categories | SIEMENS PLC Module |
|---|---|
| Brand Name: | SIEMENS |
| Model Number: | 7KM4212-0BA00-3AA0 |
| Place of Origin: | GERMANY |
| MOQ: | 1 |
| Price: | 1-99$ |
| Payment Terms: | T/T |
| Delivery Time: | in stock / 1-3 work days |
| Supply Ability: | 999 |
| Brand: | SIEMENS |
| Warranty: | 1 year |
| Packaging Details: | Brand New Original |
| Company Info. |
| Xiamen Online Union Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

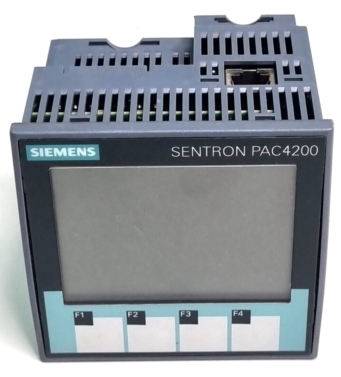

SIEMENS 7KM4212-0BA00-3AA0 SENTRON, Measuring Device :
Technical Specifications :
| Parameter | Details |
|---|---|
| Product Series | Siemens SENTRON PAC4200 Series (Advanced Power Quality Meter) |
| Function | Multi-function power meter with 200+ measurement parameters, including THD (3rd–31st harmonics), voltage/current/power quality analysis, and energy monitoring. |
| Rated Voltage | Line-to-line (L-L): 690 V AC; Line-to-neutral (L-N): 400 V AC |
| Power Supply | Wide-range AC/DC 95–240 V AC or 110–340 V DC, 9 VA power consumption |
| Control Mode | Automatic line frequency detection (45–65 Hz), TRMS measurement for sinusoidal/distorted signals. |
| Output Frequency | N/A (application-dependent, supports high-frequency control loops). |
| Communication | Integrated 10/100 Mbit/s Ethernet (Modbus TCP), optional PROFIBUS DP, PROFINET, RS485, or DI/DO modules. |
| Safety/Compliance | CE, UL certified; IEC 61557-12 (measurement accuracy), IEC 62053-22 (energy metering). |
| Mechanical Design | Compact 92 × 92 mm housing, DIN rail mounting, IP65 (front)/IP20 (rear) protection. |
| Display | Large LCD with adjustable backlight, 9 languages (including Chinese), graphical interface for trends/histograms. |
