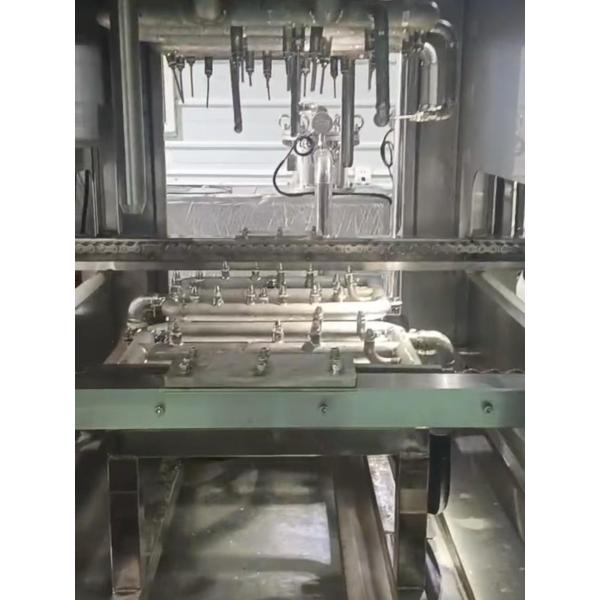

Aluminum Die Castings Spray Cleaning Machine Ultrasonic Cleaning Line Multi Nozzle Drying For Auto Parts

Spray Cleaning Machine for Aluminum Die Castings with Multi Nozzle System Drying for Auto Parts

Spray Cleaning Machine Overview:

Introduction of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging

Spray Cleaning Machine performance design and requirements:

(1) Basic design and requirements of the whole machine

One set of emergency stop (transmission stop) red button, one set of pause (only transport system stop) yellow button and one set of start green button should be installed at the entrance and exit

An exhaust pipe is set at the bottom of the equipment where it contacts the liquid.

(2) Requirements of the spray circulation system

Pressure gauges are set up to display the upper or lower spray of each group.

Each group of upper or lower spray has a manual valve to control the flow.

All pump suction ports are equipped with filters to prevent the inhalation of sheet and strip

A stainless steel filter is used and a pressure gauge is installed to manage the pollution condition of the filter through the pressure difference and replace the filter bag in time

(3) Design and requirements of the electric control system

The total power switch of the equipment control cabinet adopts "Schneider" leakage protection switch;

The intermediate relay adopts the Japanese "Omron" brand;

The contactor adopts the French "Schneider" brand;

PLC adopts Mitsubishi brand;

The human-machine interface adopts the Taiwan "Wilan/MCGS" brand;

Pump protection: Design low liquid level protection

For a complete technical solution Of Spray Cleaning Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.
