Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m

Categories SFP
Brand Name: Comelink
Model Number: 400G QSFP112 SR4 LPO
Certification: ROHS/ISO9001/CE
Place of Origin: China
MOQ: 1 PC
Price: USD 800 PCE
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 3-5 workdays
Part Number: 400G QSFP112 SR4 LPO
Form Factor: Twin-port OSFP
Max Data Rate: 400Gbps
Wavelength: 850nm
Max Distance: 50m
Connector: MPO-12/APC
Warranty: 3 Years
Package Dimensions: 5.12 x 3.54 x 1.57 inches
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

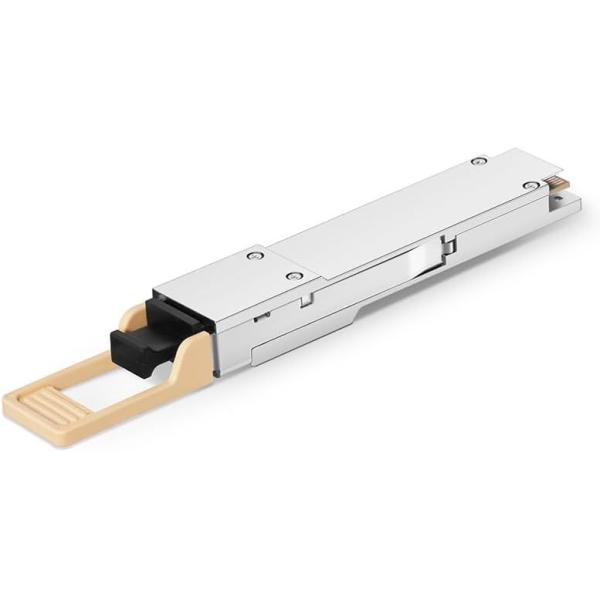

Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m

400G LPO QSFP112 SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO12 OM3 50m with FEC DDM)


Feature:


  • Built-in Marvell DSP Chip, Max Power Consumption ≤12W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation


P/NLQSFP112-400G-SR4Vendor NameComelink
Form FactorQSFP112Max Data Rate425Gbps
Wavelength850nmMax Distance50m on OM3
Modulation FormatPAM4Host RequiredFEC
ConnectorMPO-12 (APC)Voltage Supply3.3V
Cable TypeMMFDDM SupportYes
Transmitter Type850nm VCSELReceiver TypePIN
TX Power-4.6~+4.0dBmReceiver Sensitivity< -4.6dBm
Operation Temperature0 to 70°C (32 to 158°F)Maximum Power< 8W
ProtocolsQSFP112 MSA Compliant, CMIS 5.0Application400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Application:



Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.

Unleash HPC Power with InfiniBand Architecture


We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.



Flat Top OSFP Connector Shell


The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
