| Categories | Slip Ring With Flange |
|---|---|
| Brand Name: | GUREN |
| Model Number: | WX12-3P02 |
| Certification: | ISO9001.CE.RoHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | L/C,D/A,T/T |
| Supply Ability: | 1K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Installation: | Flange installation |
| Mounting flange aperture: | M3 |
| Single channel current: | 2A |
| Signal bandwidth: | DC~10MHz |
| Crosstalk Suppression: | -60dB@1MHz |
| Impact strength: | 100g/6ms |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

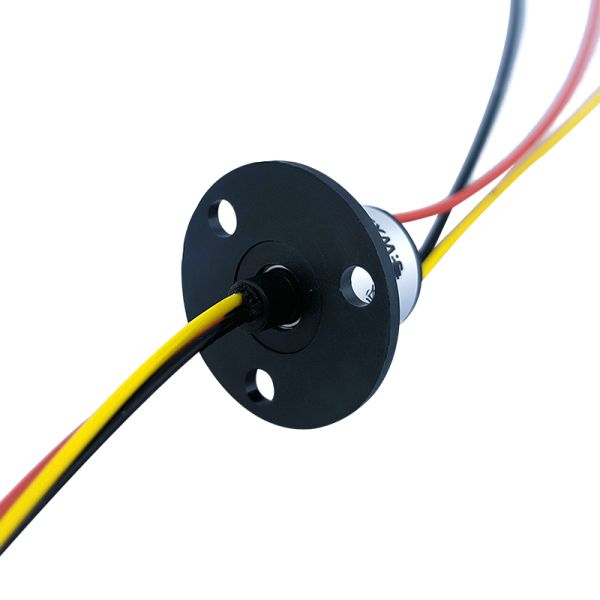

WX12-3P02 is a miniature flange conductive ring. It has 3 wire circuit channels, can pass 2A current, and uses AWG24# Teflon wire.
Flange slip ring product features:
1. It can achieve 360° rotation without winding.
2. It can pass current, analog signals, and low-frequency digital
signals.
3. The contact point uses gold-gold material to ensure stable and
durable transmission.
4. It has the advantages of low torque, low loss, low electrical
noise, and maintenance-free.
5. The outer diameter is 12.4mm.
6. The integrated structure design is easy and convenient to
install.
Performance parameters
Parameter name | Parameter Value |
Dielectric strength | 300VCA@50Hz,60s |
Insulation resistance | ≥500MΩ/300VDC |
Dynamic resistance change value | ＜10mΩ |
Rated voltage | 0～240VDC/VAC |
Wire Specifications | 28AWG Teflon wire (except WX-3P02) |
Wire length | Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications) |
Operating temperature | -20℃～+80℃ |
Operating humidity | 0～85%RH |
Protection level | IP51 |
Shell material | Engineering Plastics |
Rotational torque | 0.05N.m,+0.01N.m/6-way |
Service life | 2 million rpm |
Product Dimensions
Product images
Flange slip ring application
Flange type capsule slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
|
