| Categories | Pneumatic Slip Ring |
|---|---|
| Brand Name: | GuRen |
| Model Number: | Q8PM5-12PS |
| Certification: | ISO9001.CE.RoHS |
| Place of Origin: | china |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | L/C,D/P,T/T |
| Supply Ability: | 1K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Air channel: | 8 channel |
| Interface Specifications: | M5 |
| Applicable trachea: | 4-6mm |
| Circuit: | 12-way |
| Width: | 38mm |
| Length: | 95mm |
| Current: | 2A |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

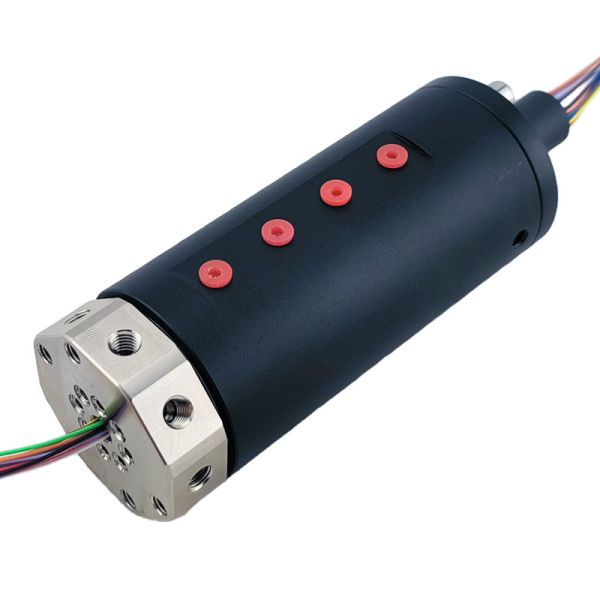

Q8PM5-12PS gas-electric combination slip ring, 8-input 8-output 12-way power, M5 interface, suitable for 4-6mm air pipe, supports 12-way 2A signal transmission. Suitable for synchronous transmission of fluid and power in robot arm joints.
Features of Q8PM5-12PS gas-electric combination slip ring
1. Multi-channel collaborative technology: 8-way gas path
independent control, response time 3.8ms (±0.5ms), support
nitrogen/chemical gas parallel delivery.
2. Durable material: Aluminum alloy shell is corrosion-resistant
and has a long service life.
3. Dynamically balanced bearing: Industrial-grade bearings reduce
friction loss and extend service life to 20 million revolutions.
4. Flexible installation: 250mm wire can be customized in length
for easy wiring.
5. Military-grade seal: O-ring seal, good sealing performance.
Q8PM5-12PS gas-electric combination slip ring parameters
Electrical parameters | Parameter Value | Gas parameters | Parameter Value |
Dielectric strength | 500VCA@50Hz,60s | Number of trachea | 8 in 8 out |
Insulation resistance | ≥500MΩ/300VDC | Pressure | -80KPa-0.8MPaor vacuum |
Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
Rated voltage | 0～440VDC/VAC | Rotation speed | 250rpm |
Wire Specifications | AWG28 Teflon wire (depending on the specific current) | Shell material | Aluminum Alloy |
Wire length | Default 250mm(Customizable) | Temperature | -30℃～+80℃ |
Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
Protection level | IP51 |
Q8PM5-12PS gas-electric combination slip ring drawings
Q8PM5-12PS gas-electric combination slip ring pictures
Application scenarios of Q8PM5-12PS gas-electric combination slip ring
Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
|
