| Categories | Ethernet Slip Rings |
|---|---|
| Brand Name: | GuRen |
| Model Number: | GK2586-56P-1 |
| Certification: | ISO9001.CE.RoHS |
| Place of Origin: | china |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | L/C,D/P,T/T |
| Supply Ability: | 1K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Rotation speed: | 250rpm |
| Shell material: | Aluminum Alloy |
| Protection level: | IP51 |
| Network Channel: | 2 group (including 18 channels) |
| Network bandwidth: | 1000M |
| Wire length: | 200cm |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
GK2586-56P-1 Gigabit network signal slip ring integrates 10 current channels, 28 signal channels and 2 sets of Gigabit Ethernet channels to help realize the rotational transmission of product current, signal and network.
GK2586-56P-1 Gigabit network signal slip ring connector Features
1. The product features an RJ45 connector for convenient network
connection.
2. 56 total channels for power and signal transmission.
3. Aluminum alloy housing with an IP51 protection rating.
4. Precious metal contact materials guarantee a service life of up
to 20 million cycles.

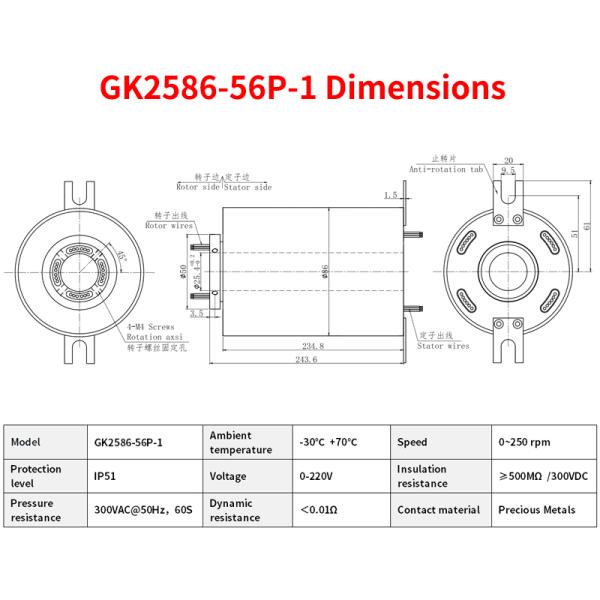

GK2586-56P-1 Gigabit network signal slip ring connector Parameters
Ethernet | 2 (1000M) | Connector Type | RJ45 male connector at both ends (female connector optional) | |
Mechanical Specifications | Electrical Specifications | |||
Parameter | Numeric | Parameter | Parameter | |
power | Signal | |||
Speed | 250rpm | Voltage | 440V AC/VDC | 440V AC/VDC |
Working life | 2 million rpm | Insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
Operating humidity | 0～85%RH | Wire Specifications | AWG#17andAWG#22 tinned Teflon wire | AWG#26tinned Teflon wire |
Operating temperature | -30'C-80C | Dielectric strength | 500VAC@50Hz,60S | |
Contact material | Precious Metals | Dynamic resistance change value | <0.01Ω | |
Shell material | Aluminum Alloy | Wire length | Standard length 300mm | |
Rotation torque | 0.01N.m+0.03N.m/6 channels | Electrical noise | <10 milliohms | |
Shockproof level | MIL-STD-810E | |||
GK2586-56P-1 Gigabit network signal slip ring Application Scenario
Ethernet slip rings are widely used in industries such as Industry 4.0 and automation (smart factories, logistics sorting, CNC machining), security and intelligent monitoring (panoramic monitoring systems, border patrol equipment), energy and infrastructure (wind turbines, solar power stations, hydropower station gates), medical and scientific research equipment, etc.
|
