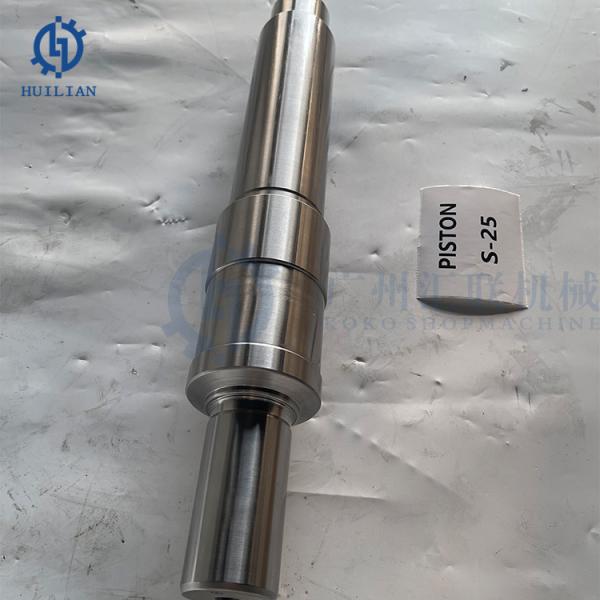

SC25 SC-25 Excavator Hammer Hydraulic Breaker Piston Rock Breaking Piston Demolition Breaker Piston

SC25 SC-25 Excavator Hammer Hydraulic Breaker Piston Rock Breaking Piston Demolition Breaker Piston

The main components of our hydraulic hammer
1. Through bolts-42Crmo: Long service life of bolts through the use of this new material
2. Back Head-20CrMo: It is experimented by our desiger many times to make the internal organization tighter and increasing the hydraulic breaker wear-resistance.
3. Front Head-20CrMo: Our material is used by the best quality standard in breaker market,it can serve the breaker to work with longer using life.
4. Control Valve: We adopt production process by grinding machine to improve the size presicion, position accuracy & coordination accuracy.
5. Cylinder Body- 20CrMo: Our material is used by the best quality standard in breaker market,its hardness can reach 61.8HRC; it is more resistant to deformation, ripping and scratching than other domestic breaker.
6. Piston-20Cr2Ni4: Our piston quality is controlled strictly by desiger; it has good hardness of 61.8HRC; it is more resistant to deformation, ripping and scratching than other domestic breaker; it can also reduce scratch problem with grinding process.
7. Chisel-42Crmo: The specially heat-treated chisel is directly applied to break rocks. There are four types for choosing: moil, blunt,flat, conical point.
8. Main Body: Front head, cylinder and back head composed the main body,each part is in best performance.
9. Seal Kit: We adopt both Parker and NOK seal kit which are most famous brand in the business line.

Hydraulic Breaker Chisel
The chisel is a special accessory installed on the hydraulic breaker. It uses the impact energy generated by the breaker piston to transfer the impact energy to the object to be broken by striking the chisel, causing it to crack and break.
Feature: 1. Super wear-resistant
2. low failure rate
3. long life
Hydraulic Breaker Rod Pin
The function of the rod pin is to control the displacement of chisel and enhance the durability of the chisel.
Our rod pins are made of high-quality steel, which is more durable and wear-resistant.

Hydraulic Breaker Piston
The piston is the impact mechanism of the breaker and also the most important component of the breaker.
Feature:
1. Strong wear resistance
2. Good corrosion resistance
3. High tensile strength
4. Good heat resistance
5. Good maintenance performance

Hydraulic Breaker Through Bolt
Bolts are subject to high load, high impact and high wear during the operation of the breaker, so they must be made of high-quality alloy steel with high strength and toughness to meet the use requirements.

Hydraulic Breaker Bush
The Bush are in direct contact with the front cylinder and the chisel, reducing the wear of the drill rod and the front cylinder;
They have a direct guiding effect on the chisel.

Silenced/Box type hydraulic breaker
● Low noise level,suitable for quietness place and cities work.
● Full-closed bracket protects the main-body.
Side type hydraulic breaker
● Shorten the total length,it is more flexible on mining site.
● More convenience to handle the breaking object.
● Easily Maintenance.
Top/Open type hydraulic breaker
● Easy-control and easy-position make it more convenience to excavator work.
● Without side-weight,reducing the rate of chisel breakage.
● Longer total-length and heavier total weight,suitable for building destroy.

Hydraulic Breaker Application Field
☞ Mining:Mining,secondary breaking.
☞ Metallurgy:Clearing slag,demolition of furance and foundation.
☞ Road:Repairing,breaking,foundation work.
☞ Raliway:Tunneling demolition of bridge.
☞ Construction:Demolition of building and reinforced concrete.
☞ Ship reparing:Clearing alam and rust from the hull.
☞ Others:Breaking frozen mud.

Recommend Products

Related Breaker Models Piston We Can Provide

Related Breaker Models Bushing We Can Provide

Through/Side/Hex Bolt:
Material: 42crmo Bolt has 10.9 Grade and 12.9 Grade Heating processing →Quench→Temper→Surface treatment: natural colour and black coating

Mounting Pin:
Material: 42crmo Hardening→Tempering-finish machining→ Mid frequency induction hardening →Outside diameter grinding The depth of quenching is 3MM and the high surface hardness,with high Durability.

Special checked piston:
Material: 20cr2*114 thermal treatment use overall carburizing →quenching heat treatment → Processing using high precision checked grinding technology With high surface precision and good fineness . Hydraulic oil can adhere to the piston surface well and forming oil film , with good lubricity and abrasive resistance , to extend the piston’s life , and keep the force of impact .

Custom Piston:
Material: 20crmo ,2*114 Our company can according to the customer request to make special specification piston: According to the assembly need grinding piston diameter, Control piston in tolerance range, make piston and cylinder
body between the fit clearance to achieve the best effect.

Inner Bush:
Material: 42crmo or 20crmo Forging blank → finish machining → carburizing→ quenching→Fine grinding Product accuracy is high and stand wear and tear.

Front cover:
Material: 42crmo or 20crmo Forging blank→finishing (finish machining) → Carburizing heat treatment →assembly surface fine grinding Product is wear-resisting and impact resistance.

Front Head,Cylinder,Back Head:
Material :20crmo or 35crmo, Forging blank→CNC(finish turning)→Precision turning (side A&B)→Polishing to remove burrs→Semi-finished product inspection→ Heat treatment →Carburizing and quenching → Precision machining of short holes and frond faces (Accurate grinding) → Grinding long holes (Accurate grinding) → Finished product inspection

Advantages Of Huilian Hydraulic Breaker

▶ Powerful Performance

Huilian hydraulic breaker became Lighter,Stronger and More Powerful than ever.
▶ Adjustable Frequency

Goochance hydraulic breaker intelligently selects the most economical striking frequency,improves production efficiency,does not waste energy and ensures the best power recovery of the next blow,and can cope with various working conditions.
▶ Easy to Maintenance

Everything has been carefully designed and maintenance is no longer a chore.
▶ Easy Operation

Huilian hydraulic breaker allows the operator to focus on the operation monitoring hydraulic parameters or power settings.
▶ Engineering and Innovation

From machining to final assembly,Goochance hydraulic breaker are manufactured with world-class technology,top raw materials and best steel to provide the highest quality and reliability.
▶ Optimal Greasing Systems

Goochance hydraulic breaker provides greasing device so the breaker always get more optimal grease supply.

We can supply the following models of rock breaker hammer spare parts

Koko Shop Machine Co.,Ltd (Huilian Machinery) found in 2011, is a professional supplier who is specializd in construction machinery parts for excavator and attachments, including Hydraulic Hammer, Hydraulic Breaker Spare Parts, Quick Coupler, Hydraulic Grab, Ripper, Vibrator, etc. And, Excavator parts Engine, Hydraulic Pump, Swing motor, Travel motor, Main control Valve, Swivel Joint, Hydraulic seal kit. After 12 years developments, Huilian Machinery factory make quality parts with it's advance technology and advance machines. Hydraulic Breaker Parts suitable for: Atlas copco, Soosan, Furukawa, Atlas Copco, Alpha, Bretec, BTI, CATEEEEEE, CP, Daemo, DMB, Alicon, D&A, Doosan, EDT, Epiroc, Everdigm, Fine, Furukawa, General GB, Hammeroc HR, Hyundai HDB, Indeco HP MES, JCB, Kent, KCB, Komac, Komatsu JTHB, JKHB, Korota, Krupp, Kwanglim, Konan, Montabert, MSB, MTB, Noah, NPK, Okada, OKB, Omal, Poqutec, Powerking, Promove, Rammer, RB Hammer, RBI, Rhino, , Soosan, Stanley, Teisaku, T&H, Toku, Toyo, UBTECH, ECand so on. Hydraulic Excavator Parts suitable for: Komatsu, Hitachi, EC, Hyundai, Kobelco, Sumitomo, Kato, Doosan, JCB, cx, Sany, Liugong, XCMG, Xugong, Zoomlion, etc. OEM and ODM service offered.

In order to meet different customers' needs, Huilian Machinery also purchases Genuine Parts from German, Japan, Korea. And we established a long-term business relationship with customers from all over the world, like: U S A, Mexico, Saudi Arabia Kenya, Algeria, UAE, Russia, Morocco, etc. In 2023, Huilian Machinery became Distributors of easywork engineering machinery (SANY Group) in Russia and indonesia.

Koko Shop Machine is continuously seeking the chances to meet all the friends both from home and abroad for win-win cooperation.

And we believe that quality parts will take us to a further place. Let’s build a better tomorrow, together!

Introduction to Koko Shop Company

CertifiCATEEEEions

Enteprise Honor

Service Brand

Our Factory

Koko Shop Machine Management Department is an important control method for processing quality. It equipped with the most advanced inspection equipments The professional control devices,it can provide accurate reference data to choose the most suitable material and accessories, which also effectively control parts quality. Besides, it also provides digital information for engineers and quality controller to determine feasibility for spare parts after processing. This is the working processing of quality control.

Chooing steady quality supplier. After purchasing raw material, duing testing if it is proved well, then we will arrange these eligible matrial that come into warehouse.

When the spare parts finish and come into testing working conditon. Every worker will be responsible for their spare parts. They will give out fact testing date and results. After proving testing date is accord with delivery standard. Then Koko Shop Machine Quality Management Department will allow these spare parts that go to packing department and packing.

Before delivery, Koko Shop Machine Quality Management Department should check all mark and packing conditon. If it is prove it is accord with exporting standard and customer's requirement. Then they will allow these equipment come into fininshed product area.

Of course Koko Shop Machine Quality Management Department have the right to make sample testing for every production step to make sure product quality.
