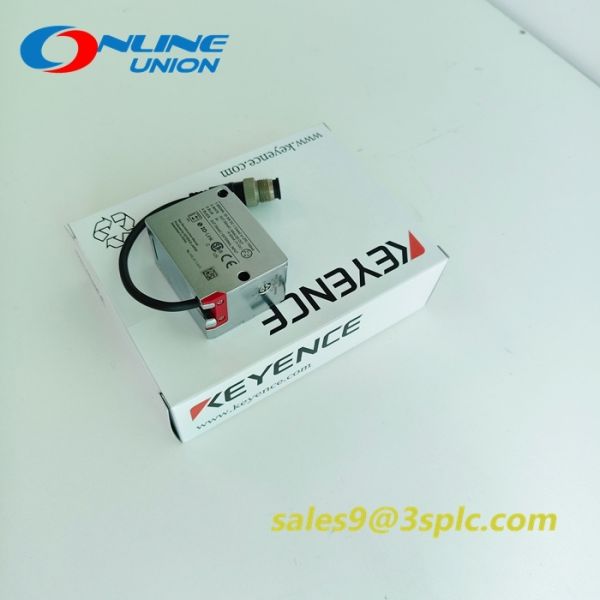

LR-TB5000CL KEYENCE Detection Distance 5 M, Cable

KEYENCE LR-TB5000CL Detection Distance 5 M, Cable:

The Keyence LR-TB5000CL is a high-performance digital laser sensor designed for precision detection in industrial automation. Part of the LR-T series, this model integrates a Time-of-Flight (TOF) measurement principle with a red laser light source (660 nm wavelength) to achieve accurate distance sensing. It supports a wide detection range of 60 mm to 5000 mm, making it suitable for applications requiring long-distance measurement. The sensor features a compact M12 connector-type design with IP65/IP67 environmental protection, ensuring reliability in harsh conditions.

The LR-TB5000CL offers flexible output configurations, including NPN and PNP transistor logic, with a maximum output current of 50 mA. It supports multiple response times (1 ms to 1000 ms) and timer functions (OFF-delay, ON-delay, single-pulse) to adapt to varying operational needs. The sensor also includes advanced features like mutual interference prevention (up to 4 units) and IO-Link compatibility for seamless integration into automated systems. Its intuitive OLED display and simplified setup process enhance usability, while the durable zinc-cast housing with nickel-chromium plating ensures long-term stability.

Technical Specifications:

Product Type: Digital Laser Sensor (TOF)

Detection Principle: Time-of-Flight (TOF)

Detection Range: 60 mm to 5000 mm

Light Source: Red laser (660 nm wavelength), Class 1 laser product (IEC60825-1, FDA CDRH Part1040.10)

Spot Diameter: Adjustable (≤ø40 mm)

Response Time: 1 ms / 10 ms / 25 ms / 100 ms / 1000 ms (selectable)

Output Type: NPN/PNP transistor open collector, 30 VDC max, 50 mA max

Control Modes: Timer functions (OFF/ON-delay, single-pulse)

Mutual Interference Prevention: Up to 4 units

Power Supply: 20–30 VDC (10% ripple), Class 2/LPS compliant

Power Consumption: ≤50 mA (excluding load)

Environmental Protection: IP65/IP67 (IEC60529)

Operating Temperature: -20°C to +55°C (non-freezing)

Relative Humidity: 35–85% RH (non-condensing)

Vibration Resistance: 10–55 Hz, 1.5 mm double amplitude (X/Y/Z directions, 2 hours each)

Shock Resistance: 1,000 m/s² (X/Y/Z directions, 6 times each)

Housing Material: Zinc cast (nickel-chromium plated), PES indicators, PMMA lens cover

Cable Type: PVC cable with M12 connector

Communication: IO-Link (Specification v1.1/COM2, 38.4 kbps)

Special Features: OLED display, DATUM mode for reference surface update, power/output protection circuits

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
