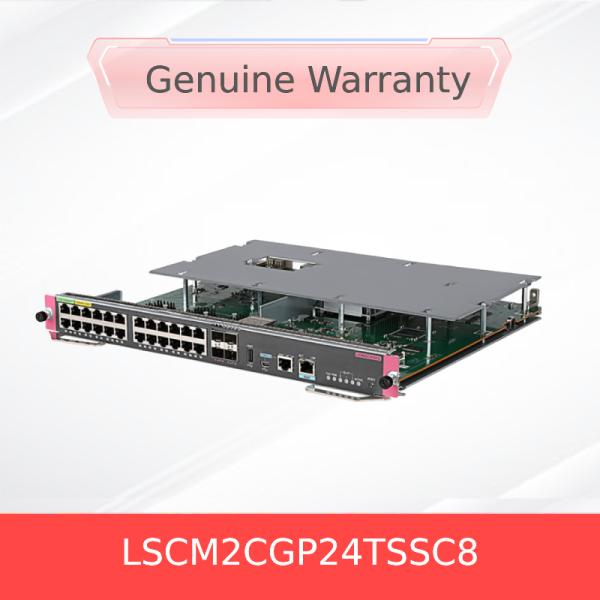

H3c LSCM2CGP24TSSC8 Optical Interface Switching Routing Engine Module

LSCM2CGP24TSSC8 is not just a simple service board, but a main control board module that integrates both the switching engine and the routing engine. Such modules usually have the following characteristics:

More powerful functions: In addition to providing ports, they may also take on core tasks such as system control and route computation.
Critical placement: Typically installed in the main control slot of a switch.
Higher price: Due to their core functionality, they are usually more expensive than ordinary service boards.

Notes before purchase and use:

Compatibility is key: Before purchasing, be sure to confirm that the module is compatible with your existing or planned H3C switch models (e.g., S7500X-M-G, S7503X-M-G series), and check the required minimum software version.
Optical modules sold separately: SFP and SFP+ optical interfaces require corresponding optical modules or cables to be purchased separately before they can be used.

Product Specifications

attribute	specification
Flash	4GB
BootROM	4MB*2
NVRAM	1MB
SDRAM	2GB
Veneer size (H×W×D).	40mm×399mm×355mm
Power consumption of the board	23W~45W
The type and number of interfaces	·1consoleport ·1xUSB Consoleport ·1network management port ·1mainUSBport ·4SFP+interfaces ·24SFPinterfaces
Interface transmission rate	·Consoleport:9600bps~115200bps(default9600bps) ·USB Consoleinterface:115200 bit/s≤,9600 bit/sby default ·Network management port:10/100/1000Mbps, half-duplex/full-duplex ·SFP+interface:10Gbit/s,1 Gbit/s,100 Mbit/s ·SFPinterface:1 Gbit/sand100 Mbit/s
Cable and maximum transmission distance are available	·Consoleport: asynchronousEIA/TIA-232cable, transmission distance≤15m ·USB Consoleinterface:USB-ABcable, transmission distance ≤10m ·Network management port:Category5ormore twisted pair cable, transmission distance5m ·SFP+interface:SFP+optical transceiver andSFPoptical transceiver ·SFPinterface: SFPoptical module
The host type that the board is compatible with	S7003X
