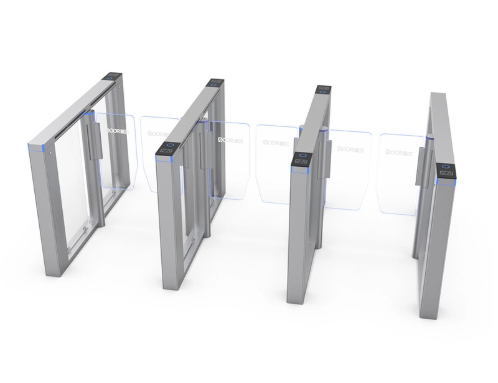

Premium Business Entrance speed Gates，Sleek & Grand Design

Categories	Speed Gate Turnstile
Brand Name:	DOOR or OEM
Model Number:	DR.TD6621B
Certification:	CE / IS09001
Place of Origin:	China
MOQ:	1 lane
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	2500 sets per month
Delivery Time:	5-7 working days
Packaging Details:	Plywood box
Material:	SUS304 brushed stainless steel
Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless
Top Cover Material:	SUS304 Stainless
Communication Interface:	RS485, dry contact, relay
Power Input:	AC100-240V; 50/60HZ
Swing arm available:	Acrylics Or Tempered Glass
Driving Motor:	Servo Motor
Opening Signal Input::	Dry Contact
Working environment:	-25℃-+70℃
Pass speed:	30-50p/m
Support System:	Face Recognition,ic/id Card,fingerprint
Motor:	Servo motor
IR Sensor:	8 pairs
Passage Width:	Standard 600mm, max 900mm
IP Rating:	IP42
Mean Cycles Between Failure:	20 million times
Voltage:	AC110V/AC220V±10% 50-60Hz
Operating Power:	Single Core 100w, dual core 200w
Method of position:	Motor + clutch + encoder
Mtbf:	10 Million Times
Size:	1500110988mm
Color:	Can Be Customized
Operating Time:	Adjustable, Fastest 0.3S

Contact Now

Add to Cart

Company Info.

Shenzhen Door Intelligent Control Technology Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Premium Business Entrance speed Gates

Product Specifications

Key Features

Dual-color lighting system (red/green) for clear traffic indication and channel control
Integrated chassis lighting for collision prevention and enhanced aesthetics
Advanced anti-trailing and anti-reverse passage functions
Sound and light alarms for unauthorized access attempts
8-pair infrared anti-pinch protection with fire alarm linkage
Triple pedestrian protection system: infrared sensors, pass logic, and return-when-blocked
Multiple operation modes: normally closed (locking/non-locking) and peak traffic
Memory opening, delay closing, and overtime closing functions
Bidirectional traffic capability with ≤180° swing arc
Integrated card/QR code reader with face recognition compatibility
Fire-safe free passage during power outages
Ultra-fast 0.5 second opening/closing speed
Servo motor driven for reliable, quiet operation with extended lifespan

Applications

Widely used for official or corporate buildings, sectioning off certain areas in hotels (gyms, spas), industrial buildings or offices.
