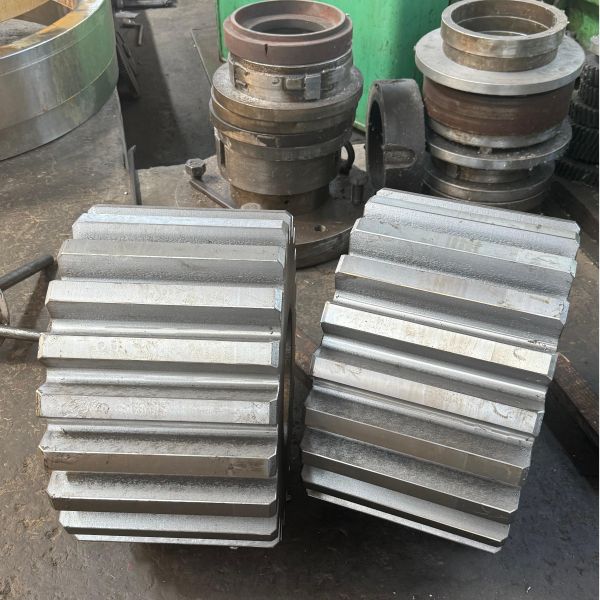

Custom Spur Gears with Rectangular Spline 220-260 HB Hardness

1) Description of Spur Gear

Spur gears are cylindrical gears with teeth parallel to the axis, and the teeth are distributed along the busbar direction of the cylinder,

which is one of the most basic and common types of gear transmission.

2) Feature of Spur Gear

The structure is simple, the difficulty of tooth processing is low, and it is easy to understand and manufacture;

only radial force is generated during transmission, and there is no axial force, which requires low axial bearing capacity of the bearing;

The transmission ratio is stable, which can achieve accurate constant ratio transmission.

3) Working Principle

When the active spur gear rotates, its teeth meshed with the teeth of the driven spur gear in turn, and the torque is transmitted

from the driving shaft to the driven shaft through the thrust between the tooth surfaces.

4) Application of Spur Gear

It is suitable for equipment that requires simple transmission structure, such as the transmission mechanism inside the clock,
the power transmission system of small toys, and the transmission parts of household sewing machines.

YIZHI MACHINERY which is equipped with a full range of machining capabilities to satisfy customer needs.

Our team has extensive experience in precision gearing systems for numerous industries. We have supplied gears for mining equipment, power tools, hydraulic pumps and the rail transit industry.

The feature products are double helical gear and precision spiral bevel gear, equipped with Hofler Rapid and helix grinding machines, Niles ZE and ZP grinding machines and Gleason Phoenix bevel gear grinding machines. This capability allows us to provide quality customs made gears to domestic and overseas markets.
