Name: 24G 8dBi Fiberglass Omnidirectional WiFi Antenna 20x600mm
Brand: Leenz
Price: 1 USD

Home >

2.4G 8dBi Fiberglass Omnidirectional WiFi Antenna 20x600mm

Categories	Outdoor Waterproof Omnidirectional Antenna
Brand Name:	Leenz
Model Number:	LZANT-10227-A
Certification:	RoHs
Place of Origin:	China
MOQ:	10
Payment Terms:	T/T
Supply Ability:	5K per day
Delivery Time:	15 days
Frequency:	2400-2500MHz
VSWR:	<2.0
Peak Gain:	8dBi
Impedance:	50

Contact Now

Add to Cart

Company Info.

Dongguan Leenz Electronics Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Omni Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	8dBi
Efficiency	≈83%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	15±5°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N -J connector
Dimension	Φ20*600mm
Weight	0.23Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

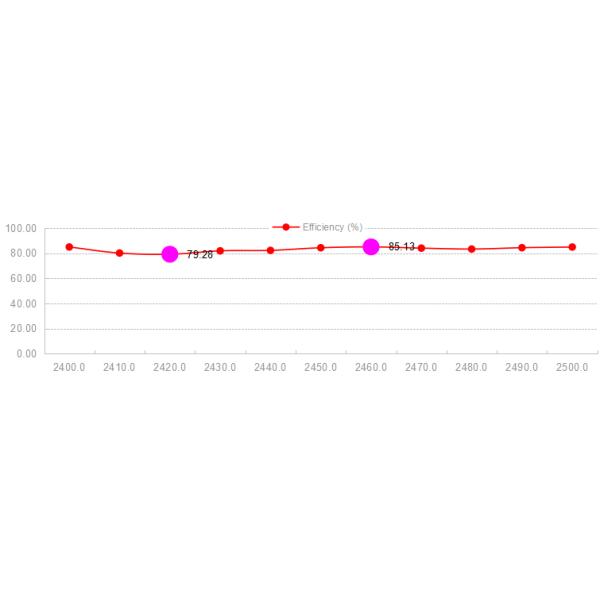

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern

Product Tags:

2.4G fiberglass WiFi antenna
