Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Categories Industrial Ethernet Switch
Brand Name: E-link
Model Number: ETH-DIMC2012FM
Certification: CE, RoHS, FCC
Place of Origin: China
MOQ: 1pair
Price: $19.9-399
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Delivery Time: 5-12 working days
Packaging Details: Ethernet Switch Standard Export Package
Key Word: Mini Industrial PoE Media Converter
Input Power: 12~48VDC
Weight: 0.25Kg
Dimensions (WxDxH）: 95 X 70 X 30 Mm
Operating Temperature: -40°C To 75°C
Mounting Options: DIN-Rail / Wall-mount
Contact Now
Company Info.
E-link China Technology Co.,LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Specifications
Highlight:

Industrial L2+ Managed Fiber Switch

,

12-Port 1000X SFP Fiber Switch

,

2-Port 1000X SFP Fiber Switch







Key Word:
Industrial Ethernet Switch
Operating Temperature:
-40°C To 80°C
Input Power:
12~48VDC
Dimensions (WxDxH):
149 X 114 X 50 Mm
Casing:
Aluminum Case
Mounting Options:
DIN-Rail Mount
Description
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Advantages
► Support 12x1000Base-X SFP + 2x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
Technical Indexes

Ethernet
Standards:IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.3u 100BASE-TX/100BASE-FX
Forward & Filtering Rate:148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory:12M bits
Processing Type:Store-and-Forward
Backplane bandwidth110Gbps
Max Packet Length:10K Bytes Jumbo Frame
Address Table Size:8K MAC Addresses

Overview
ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP
fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate
under the temperature range from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment. T
he ETH-DIMC2012FM provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control,
network access control and authentication, as well as Secure Management features to protect customer’s industrial and automation
network connectivity.

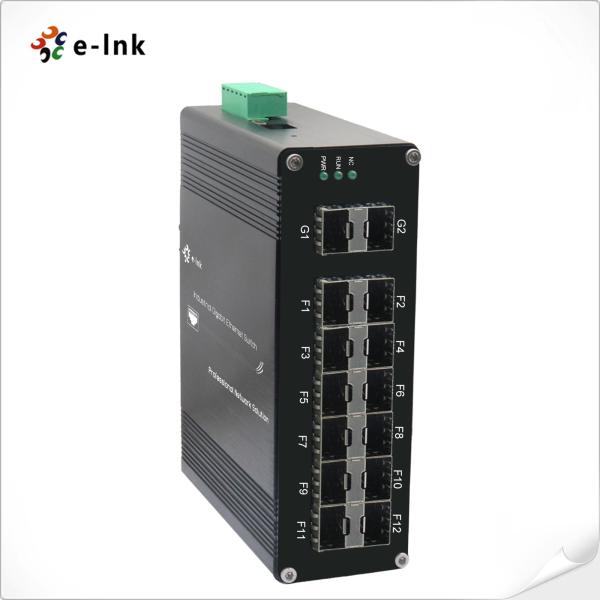

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch 0
Ordering Information

ModelDescription
ETH-DIMC2012FMIndustrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
SFP Options► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed
Power Options► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
