Zirconia Al2O3 Alumina Ceramic Components Accessories Impact Resistance

Categories Alumina Ceramic Components
Brand Name: HENGYUAN
Model Number: Alumina Ceramic Crusher Parts
Certification: CE,UL
Place of Origin: WUXI JIANGSU CHINA
MOQ: 100
Price: $1-$20
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Delivery Time: 20 DAYS
Packaging Details: Carton
Material: Alumina Ceramic Crusher Parts
Color: Yellow Or White
Maximum Use Temperature: 1600-1650℃
Wear Resistance: High Wear resistance
OEM,ODM: Acceptable
Orgin: WUXI JIANGSU CHINA
MOQ: 100
Package: Carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Zirconia Al2O3 Alumina Ceramic Components Accessories Impact Resistance

Al2O3 Alumina Ceramic Crusher Parts Accessories High Wear Resistance Crushing Equipment
Product Description

The specialized ceramic machine for crushing equipment operates by directing large pieces of glass vertically from the upper part into a high-speed rotating impeller. Under centrifugal force, the material collides at high speed with another portion distributed in an umbrella shape around the impeller. After impact, the material forms vortices between the impeller and casing, undergoing multiple collisions and friction cycles for thorough crushing. The processed material discharges from the lower part, completing a closed-loop cycle controlled by screening equipment to achieve the desired particle size.

Product Attributes
AttributeValue
MaterialAlumina Ceramic Crusher Parts
ColorYellow Or White
Maximum Use Temperature1600-1650℃
Wear ResistanceHigh Wear resistance
OEM,ODMAcceptable
OriginWUXI JIANGSU CHINA
MOQ100
PackageCarton
Technical Specifications
MaterialUnitA95% Alumina CeramicsA97% Alumina CeramicsA99% Alumina CeramicsA99.7% Alumina Ceramics
Densityg/cm³3.63.723.853.85
Flexural StrengthMpa290300350350
Compressive StrengthMpa3300340036003600
Modulus of ElasticityGpa340350380380
Impact ResistanceMPam1/23.9455
Weibull ModulusM10101111
Vickers HardnessHV0.51800185019001900
Thermal Expansion Coefficient10-6K-15.0-8.35.0-8.35.4-8.35.4-8.3
Thermal ConductivityW/Mk23242727
Thermal Shock Resistance△T℃250250270270
Maximum Use Temperature1600160016501650
Volume Resistivity at 20℃Ω≥1014≥1014≥1014≥1014
Dielectric StrengthKV/mm20202525
Dielectric constantεr10101010
Product Images

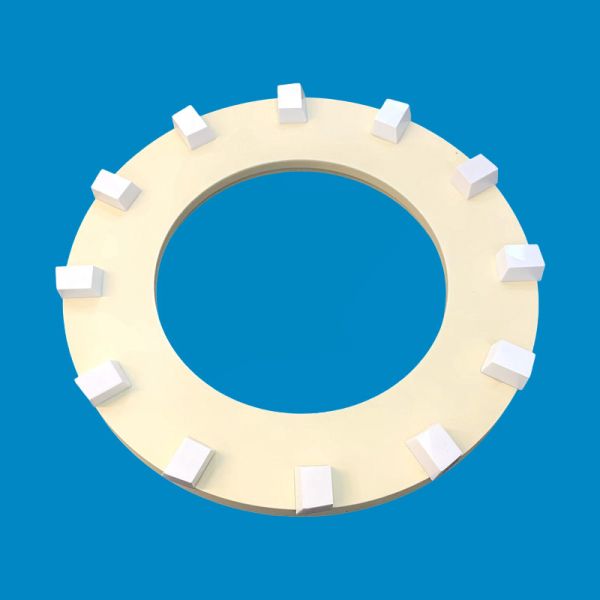

Buy Zirconia Al2O3 Alumina Ceramic Components Accessories Impact Resistance at wholesale prices
