14Ga Stainless Steel 304 Lacing Anchors Insulation Pins For Removable Blanket Pads

Quick details of lacing anchor insulation pins :

Product name : Lacing Anchors Insulation Pins For Removable Blanket Pads

Material :stainless steel 304,316,316L is in common ,galvanized steel to be special request

Head diameter : 22mm diameter ,30mm diameter

Pin diameter: 12GA (2.7mm), 14GA(2.0mm) is common size, Other sizes are available by special order.

Pin length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order

Install parts:Self-locking washers are available in a variety of sizes, shapes, and materials.
Domed Caps can also be used to cover the tip of the nail.

Application of lacing anchor insulation pins :

• Provide strong ,durable fixings even in elevated temperature applicaitons
• Used to maintain internal insulation between outer and inner liners
• Used to retain the blankets under metal cladding and jacketing

Specification of lacing anchor insulation pins :

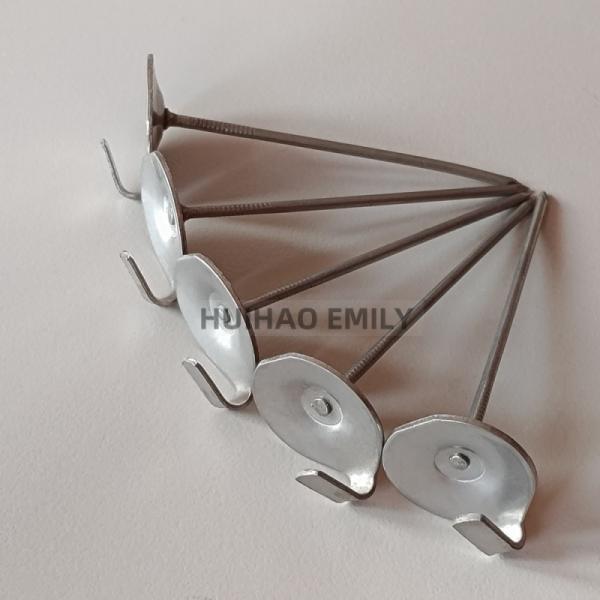

Details Pic of Lacing Anchors insulation pins :

Advantages of lacing anchors insulation pins

• Wide choice of fasteners for removable insulation blanket
• Provide strong, durable fixings even in elevated temperature applications
• Available in galvanized steel and stainless steel
• Lacing anchors marked NO AB to notify the blanket is asbestos free
• Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
• Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

How to Install the Lacing Anchor insulation pins

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

Package of Lacing Anchor insulation pins
