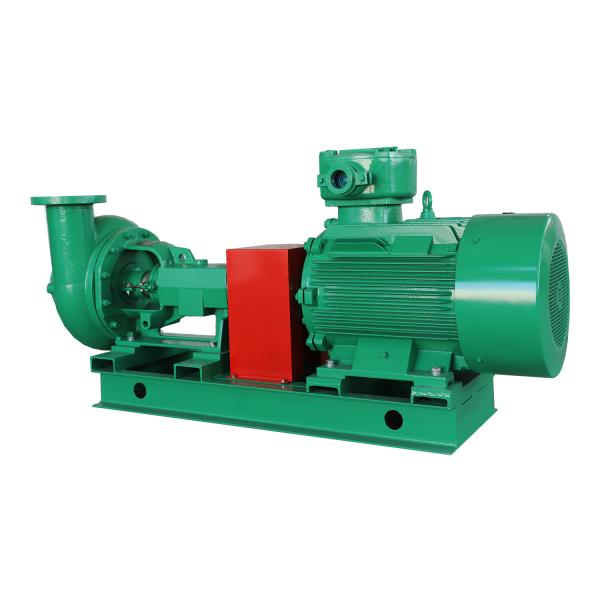

Horizontal sand pump Rotating speed 1480 r/min Motor Power 37 kw
Descriptions of Horizontal sand pump Rotating speed 1480 r/min Motor Power 37 kw:
The SB series sand pump is a horizontal end-suction single-stage cantilever centrifugal pump. It is mainly used to transport mortar and slurry media. It is one of the essential products for the drilling mud purification system of petroleum mines. This pump is widely used in industrial and mining enterprises to transport various slurries and slurries, such as oil mines to transport drilling mud; mineral processing plants to transport concentrate slurry and tailings; coal washing plants to transport coal slime and tailings, etc.
This product adopts a double sealing form of mechanical seal and packing, which has good sealing effect and long service life. It is an ideal sealing form for pumps used in petroleum and mining fields.
Specifications:
| Model | Flow m³/h | Lift m | Rotating speed r/min | Efficiency ≥% | Shaft power kw | Motor Power kw | Required NPSH m |
| SB200×150 | 150 | 31 | 1480 | 63 | 20.1 | 37 | 4.5 |
| SB200×150 | 180 | 35 | 1480 | 63 | 27.2 | 45 | 4.5 |
| SB200×150 | 200 | 40 | 1480 | 65 | 33.5 | 55 | 4.5 |
| SB200×150 | 240 | 42 | 1480 | 65 | 42.2 | 75 | 4.5 |
| SB200×150 | 260 | 45 | 1480 | 65 | 49.1 | 90 | 4.5 |
| SB150×125 | 150 | 32 | 1480 | 64 | 20.4 | 37 | 4.2 |
| SB150×125 | 180 | 36 | 1480 | 64 | 27.6 | 45 | 4.2 |
| SB100×80 | 60 | 23 | 1480 | 63 | 5.9 | 11 | 3.5 |
| SB100×80 | 80 | 25 | 1480 | 63 | 8.6 | 15 | 3.5 |
| SB100×80 | 100 | 26 | 1480 | 65 | 10.9 | 18.5 | 3.5 |
| SB100×80 | 120 | 28 | 1480 | 65 | 14.1 | 22 | 3.5 |
| SB80×50 | 60 | 21 | 1480 | 62 | 5.5 | 11 | 3.2 |
| SB80×50 | 50 | 18 | 1480 | 62 | 3.9 | 7.5 | 3.2 |
|
