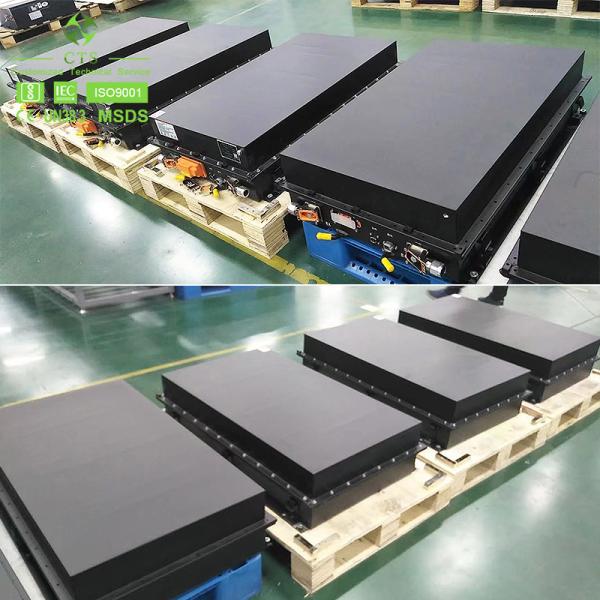

CTS Standard EV Battery Packs 345.6VV 280Ah 96.8KWH Lifepo4 Battery System for mining tractor truck

CTS Standard EV Battery Packs 345.6VV 280Ah 96.8KWH Lifepo4 Battery System for mining tractor truck

CTS Standard EV Battery Packs 345.6VV 280Ah 96.8KWH Lifepo4 Battery System for mining tractor truck
CTS Standard EV Battery Packs 345.6VV 280Ah 96.8KWH Lifepo4 Battery System for mining tractor truck
Categories EV Battery Pack
Brand Name: CTS Battery
Model Number: CTS-LFP345280
Certification: CE, UN38.3, MSDS
Place of Origin: China
MOQ: 2 SETS
Price: USD150-USD200/KWH
Payment Terms: T/T, Western Union, L/C
Supply Ability: 6000 SETS/YEAR
Delivery Time: 60-70 DAYS
Packaging Details: Plywood case
Battery Product: 345.6V 280Ah 96.8kWh
Application: electric tractor agricultural, electric farm tractor, electric towing tractor electric tractor truck
Array Mode: 2 battery modules+ a PDU box
PDU Box: Including EVCC, relays, master BMS, precharge resistor and fuses and other conponents
Charge Power: Max 45kW cont.
Charge Standard: CCS1/CCS2 DC fast charging
Discharge Power: 90kW cont. 180kW peak for 30 sec
Other Options: 20KW OBC, 6.6KW OBC, 12V 24V DCDC Converter
Contact Now
Company Info.
Hunan CTS Technology Co,.ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CTS Standard EV Battery Packs 345.6VV 280Ah 96.8KWH Lifepo4 Battery System for mining tractor truck

CTS Standard EV Battery Packs 345.6VV 280Ah 96.8KWH Lifepo4 Battery System for mining tractor truck
✅Multiple voltage and capacity choices: Support the max connection of 12 module(4S3P) in one system. Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:Redesigned liquid cooling system for improved thermal consistency and longer life.
✅Safer EV Battery Module: Reliable lifepo4 cells, multi-tiered safety system.
Cell Type - ChemistryPrismatic- LFP
Rated Capacity280Ah
Rated Voltage345.6V
Energy96.8kWh
Series-parallel Connection1P108S
IP ProtectionIP67
Cycle life≥3000cycles(90%DOD, 1C)
MECHANICAL SPECIFICATIONS
Weight~500±3kg
Dimension(L*W*H)2*(1200*630*240mm)+a PDU box(L500*W390*H200mm)
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage270V
Max Continuous Discharging Current280A @25℃ with liquid cooling
Peak Discharge Current in 5 Seconds500A within 5s
CHARGE SPECIFICATIONS
Charging Limited Voltage394.2V
Max Charging current100A@380VAC, @25℃, CCS2 DC charging
Recommended Charging current20A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range0~45℃
Discharge Temperature Range-20~55℃
Recommended Operating Temperature15~35℃

Storage Temperature & Humidity Range

-20~35℃, 45~75%RH (Less than 1 month)
-10~35℃, 45~75%RH (Less than 3 months)
15~35℃, 45~75%RH (Recommended)

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
