N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100

Categories	Outdoor Waterproof Omnidirectional Antenna
Brand Name:	Leenz
Model Number:	LZANT-11888-A
Certification:	RoHs
Place of Origin:	China
MOQ:	10
Payment Terms:	T/T
Supply Ability:	500 per day
Delivery Time:	15 days
Frequency:	1420-1450M
VSWR:	<2.0
Peak Gain:	7dBi
Impedance:	50

Contact Now

Add to Cart

Company Info.

Dongguan Leenz Electronics Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency	1420-1450MHz(Customizable others)
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	7dBi
Efficiency	≈74%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	12±3°
Max Power	100W
B. Material & Mechanical Characteristics
Connector Type	N - k
Dimension	Φ25*1100mm
Colour	white
Weight	0.56Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 45 ˚C ~ + 85 ˚C
Storage Temperature	- 45 ˚C ~ + 85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

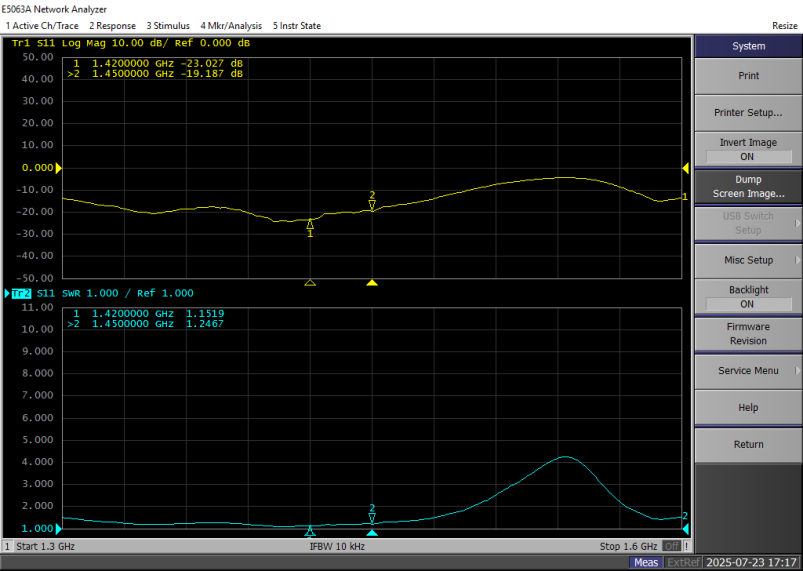

2.1 VSWR

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
