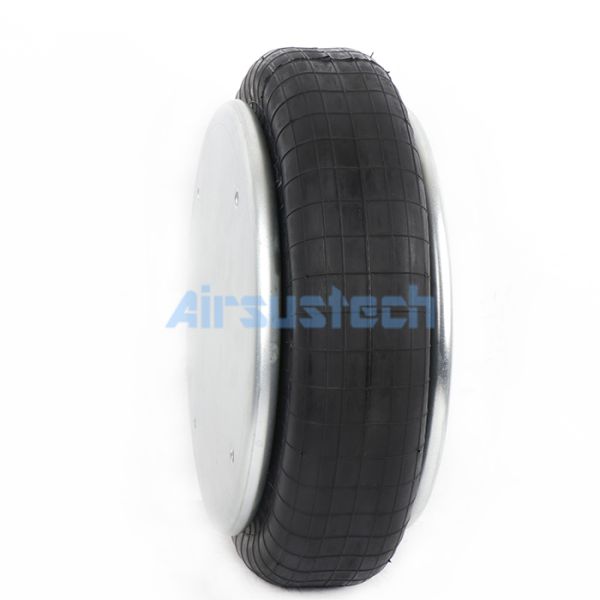

Metric Rubber Single Convoluted Air Spring TRP AS71030 G3/4 M8 Air Suspension System

Metric Rubber Single Convoluted Air Spring TRP AS71030 G3/4 M8 Air Suspension System

Part Interchanges

TRP Part Number: AS71030

Contitech Part Number: FS 530-14

Contitech Part Number: FS 53014

Contitech Part Number: FS 530 14
Triangle Part Number: AS-4442

Triangle Part Number: AS4442

Triangle Part Number: AS 4442
Firestone Part Number: W01-358-7103

Firestone Part Number: W013587103

Firestone Part Number: W01 358 7103
FleetPride Part Number: AS7103
Goodyear Part Number: 1B14-350

Goodyear Part Number: 1B14350

Goodyear Part Number: 1B14 350
Goodyear Flex No. 578913351
Taurus Part Number: 6326
Peerless Part Number: 0550-00015

Peerless Part Number: 055000015

Peerless Part Number: 0550 00015

Product Dimensions

• This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 55 mm, a maximum extended height of 160 mm, and a working stroke of 105 mm.
• For the 1B53014 model, the cover plate diameter is 231 mm, and the center-to-center distance is 157.5 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 325 mm.
• The industrial convoluted rubber air spring operates via gas filling. Its air connection is G3/4, and the screw nut size is 2×M8×1.25.

Product Technical Parameters

Vibration isolation - dynamic characteristics values

Pneumatic application - static characteristic values

The Specifications of AIRSUSTECH Air Springs

♦Install
Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery.

♦Maintain
Maintenance procedures for air springs tend to be minimal, air springs require no lubrication, and there are no seals or guides that can become misaligned or damaged like other springs. Air springs should be stored at room temperature in a dry, dark place.

♦Environment
Due to their durability and simplicity, air springs are suitable for most industrial and commercial applications. Rubber and neoprene are prone to dry rot, so dehumidified conditions can shorten the life of an air spring.

♦Medium
Air spring bellows can also accept other types of fluids such as nitrogen, carbon, water and antifreeze.
