| Categories | Industrial Fiber Media Converter |
|---|---|
| Brand Name: | E-Link |
| Model Number: | LNK-IMC1200GP90 |
| Certification: | ROHS,FCC,CE |
| Place of Origin: | China |
| MOQ: | 1 Pcs |
| Price: | $29.9-389 |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability: | 1000 Pcs/Month |
| Delivery Time: | 3-12 Working Days |
| Packaging Details: | Converter Standard Export Package |
| Keywords: | Industrial Media Converter |
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) |
| MTBF: | > 200,000 Hrs |
| Weight: | 0.25KG |
| Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Power Consumption: | 185W Max |
| Company Info. |
| E-link China Technology Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 1000Base-X SC
► Supports IEEE802.3af/at PoE (30W) or IEEE802.3bt PoE++(90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

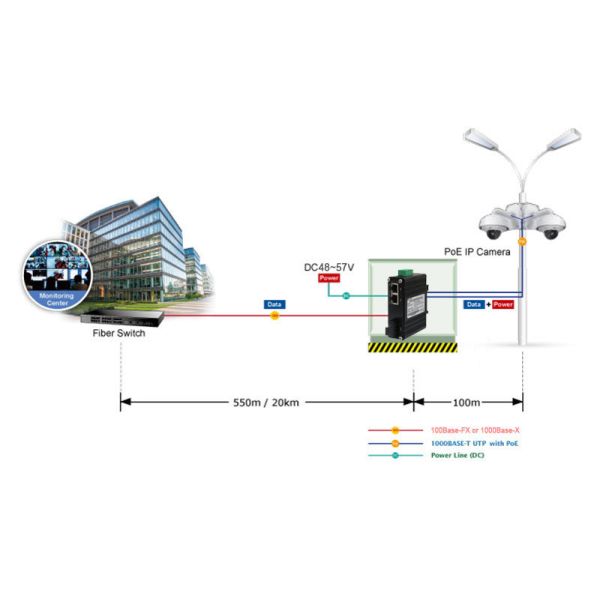

The LNK-IMC1200GP90 Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200GP90 Series is easy to mount on a DIN rail or in distribution boxes.
Ethernet | |
Standards: | IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX | |
IEEE802.3ab 1000Base-T | |
IEEE802.3z 1000Base-X | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
IEEE802.3af Power over Ethernet | |
IEEE802.3at Power over Ethernet | |
IEEE802.3bt Power over Ethernet | |
Processing Type: | Store-and-Forward |
Forward Filter Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
Packet Buffer Memory: | 1 Mbit |
Max Packet Length: | 9K Bytes |
Address Table Size | 2K MAC Addresses |
Interface | |
Connector: | 2 x RJ45 |
Optical Port: | 1 x SC 1000Base-X |
Model | Description |
LNK-IMC1200GP90 | Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m |
LNK-IMC1200GP90-20 | Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
LNK-IMC1200GP90S-20 | Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
|
