| Categories | Oil Immersed Transformer |
|---|---|
| Place of Origin: | China |
| Brand Name: | HENTG Power |
| Model Number: | S13 |
| Certification: | CE |
| MOQ: | 1 |
| Frequency: | 50Hz, 60Hz |
| Coil Number: | Three Windings, Multi Winding, Two Windings, Single Winding |
| application: | distribution system |
| Coil Structure: | fully sealed construction |
| Output Voltage: | 415V, 110V, 220V, 380V, 400V , 440V |
| Input Voltage: | 10.5kV, 3kV, 12.47kV, 6.6kV |
| Type: | Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer |
| Company Info. |
| Hunan Hentg Power Electric Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Coil Number | Three Windings, Multi Winding, Two Windings, Single Winding |
| Application | Distribution system |
| Coil Structure | Fully sealed construction |
| Output Voltage | 415V, 110V, 220V, 380V, 400V, 440V |
| Input Voltage | 10.5kV, 3kV, 12.47kV, 6.6kV |
| Type | Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer |


| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10/6.3/6 | 65 | 455/430 | 4.0 |
| 50 | 80 | 655/625 | |||
| 63 | 90 | 785/745 | |||
| 80 | 105 | 945/900 | |||
| 100 | 120 | 1140/1080 | |||
| 125 | 135 | 1360/1295 | |||
| 160 | 160 | 1665/1585 | |||
| 200 | 190 | 1970/1870 | |||
| 250 | 230 | 2300/2195 | |||
| 315 | 270 | 2760/2630 | |||
| 400 | 330 | 3250/3095 | |||
| 500 | 385 | 3900/3710 | |||
| 630 | 460 | 4460/4460 | 4.5 |

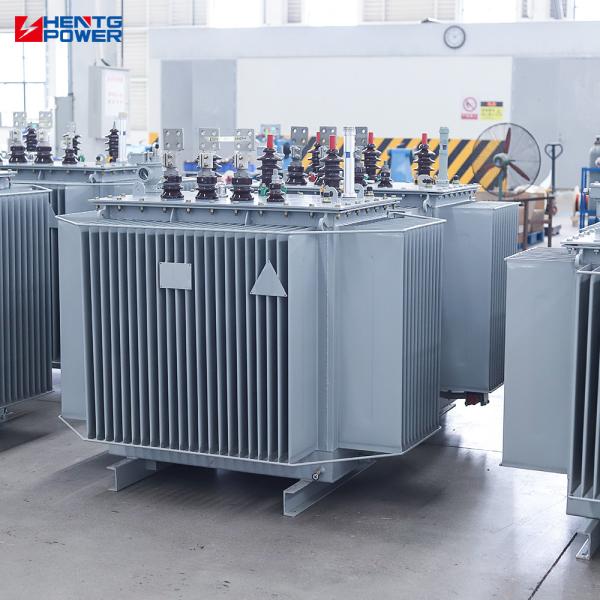

We supply a full range of oil-immersed distribution transformers from 30KVA to 2500KVA, featuring high-grade silicon steel and oxygen-free copper windings.
Feature: Customizable voltage, tap range, enclosure color, protection grade (IP54/IP65), etc.
Factory-direct manufacturing with high efficiency and stock availability; delivery within 15-20 days for standard orders.
Meet urgent project timelines, reduce lead time, and strengthen supply chain control.
|
