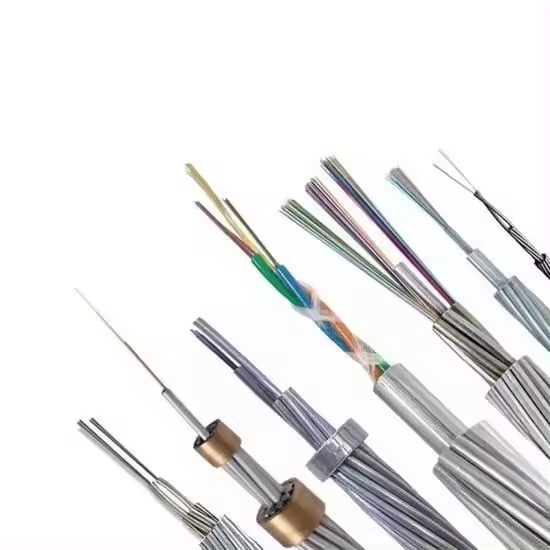

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable

Categories	OPGW Fiber Optic Cable
Brand Name:	JQ/Haiso/OEM
Model Number:	OPGW
Certification:	CE/ISO9001/RoHS/FCC
Place of Origin:	Guangdong, China
MOQ:	1 piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	8000 kilometers per month
Delivery Time:	2days
Packaging Details:	Wooden Drum
Application:	Telecommunications
Oem:	Available
Operating temperature:	-40℃- +70℃
Warranty:	2years
Package:	6PCS/Carton box
Number /diameter of AC wire:	2.4-3.5 mm
Diameter of Cable:	10.5-15 mm
Cross Section Area:	60-180 mm2
Fiber:	G652D, G657A1, G657A2
Fiber Mode:	Single Mode or Multi Mode
Model:	OPGW
Installation:	Self-supporting Aerial
Usage Scenario:	FTTH FTTB FTTX Network
Fiber Color:	Blue,Orange,Brown,Aqua,Grey
Number Of Cores:	4-48 core
Maximum Crush Resistance:	3000N/100mm
Water Seepage:	water blocked
Optical Union:	Stainless Steel Optical Unit
Standard:	IEEE1138
Operating Temperature:	-40°C to +70°C
Layer:	ACS, AA

Contact Now

Add to Cart

Company Info.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

24 36 48 72 Core OPGW Optical Ground Wire Cable Composite Fiber Optic Cable

Product Description:

Overview of G652D OPGW Fiber Optic Cable (24, 36, 48, 96, 144 Cores)

Optical Fiber Composite Overhead Ground Wire (OPGW) is a dual-purpose cable that integrates optical fiber units within the structure of an overhead ground wire. This innovative design combines the electrical and mechanical properties of traditional ground wires with the capability to transmit audio, video, and data signals, ensuring efficient communication alongside power transmission.

Key Features of G652D OPGW Fiber Optic Cable

Compact and Lightweight: Features a small cable diameter and reduced weight, minimizing short-circuit current capacity for optimized performance.
Durable Metal Armoring: The outer layer is encased in metal, providing resistance to high-voltage galvanic corrosion and degradation.
Ease of Maintenance: Designed for straightforward maintenance and capable of addressing line-crossing challenges, with mechanical properties that meet diverse line requirements.

Structural Design of G652D OPGW Fiber Optic Cable

Central Loose Tube Type: Ideal for cables with a cross-sectional area of 80 mm² or less, offering a compact solution for lower fiber counts.
Loose Layer Stranded Type: Suited for cables with larger cross-sectional areas, accommodating higher fiber counts such as 96 or 144 cores for enhanced capacity.

Specifications:

Cable model	OPGW-60	OPGW-70	OPGW-90	OPGW-110	OPGW-130
Number /diameter(mm) of stainless steel tube	1/3.5	2/2.4	2/2.6	2/2.8	1/3.0
Number /diameter of AL wire(mm)	0/3.5	12/2.4	12/2.6	12/2.8	12/3.0
Number /diameter of ACS wire(mm)	6/3.5	5/2.4	5/2.6	5/2.8	6/3.0
Diameter of Cable (mm)	10.5	12	13	14	15
RTS(KN)	75	45	53	64	80
Cable weight (kg/km)	415	320	374	432	527
DC resistance(200C W/km)	1.36	0.524	0.448	0.386	0.327
Modulus of elasticity(Gpa)	162	96.1	95.9	95.6	97.8
coefficient of Linear thermal	12.6	17.8	17.8	17.9	17.2
expansion(1/℃×10-6)	12.6	17.8	17.8	17.9	17.2
Short circuit capacity (kA²s)	24	57.3	78.9	105.8	150.4
Max. operation temperature (℃)	200	200	200	200	200
Max. fiber count	48	32	48	52	30

Company Profile: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Located at 2nd Floor, Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou City, Guangdong Province, China, Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a leading high-tech joint-stock enterprise. Specializing in the research, development, production, and sales of optical cables ranging from 2 to 288 cores, the company is committed to delivering innovative and high-quality solutions.

Guided by a philosophy of integrity, agility, efficiency, and innovation, Jiqian strives for excellence and prioritizes customer satisfaction as the cornerstone of its performance. The company is dedicated to providing superior products, competitive pricing, and exceptional service to foster enduring partnerships.

Jiqian warmly invites global customers to visit its facility and establish long-term, mutually beneficial relationships.

WHY CHOOSE US:

Certification:

Frequently Asked Questions (FAQ)

Who are we?
Based in Guangdong, China, since 2017, we serve markets in Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of 11–50 dedicated professionals.
How do we ensure quality?
We provide pre-production samples for approval before full-scale manufacturing and conduct thorough final inspections prior to shipment.
What products can you purchase from us?
We offer Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and both Outdoor and Indoor Fiber Cables.
What services do we provide?
- Delivery Terms: FOB, EXW
- Payment Currencies: USD, CNY
- Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
- Languages: English, Chinese
What is your minimum order quantity (MOQ)?
Our MOQ is 1 kilometer.
Can I request a sample?
Yes, we provide free samples; you only need to cover the shipping costs.
Do you support OEM or ODM?
Yes, as a manufacturer with our own Engineering Department, we can customize products based on your specific requirements.
What is your delivery timeline?
Standard delivery takes 3–7 days after order confirmation, depending on the order volume.
