| Categories | Water Tank Blow Moulding Machine |
|---|---|
| Brand Name: | HUAYU |
| Model Number: | HY2500-4 |
| Certification: | ISO9001, CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | 350000 USD |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1SET 120DAYS |
| Delivery Time: | 4 MONTHS |
| Packaging Details: | be disassembled into many parts for container transportation |
| Capacity Range: | 500--2500L,4layers |
| Applicable Industries: | Other |
| Voltage Range: | 220V/380V/415V/440V |
| Power Supply: | 380V/50Hz |
| Average Aonsumption: | 280KW |
| Platen Size: | 1500*1600*60mm(W*H*T) |
| Max Volume: | 2500L |
| Machine Dimension: | 10.5*5.4*6m |
| Plc: | Siemens |
| Automation: | Fully automatic |
| Power: | 95 KW |
| Condition: | New |
| Touch Screen: | Siemens |
| Machinery Test Report: | Provided |
| Production Speed: | 100-200 pcs/hour |
| Company Info. |
| Weifang Huayu Plastic Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

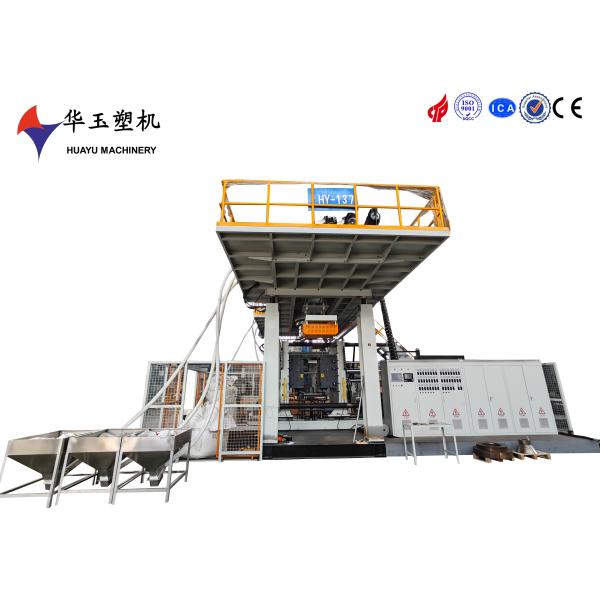

The HUAYU2500L-4 Blow Moulding Machine is designed with advanced energy-saving technology, making it an economical choice for large plastic product manufacturing. It ensures high precision and consistent product quality, with features like automated calibration and real-time monitoring.
Hydraulic system | ||
main oil tank capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
main oil pump | gear pump163CC | |
main oil pump motor | 48kw | |
Servo oil tank capacity | 200L | |
Servo oil pump model | Plunger pump22 | |
Servo oil pump motor | 7.5kw | |
Electronic system | ||
Main operation panel | Touch screen 9" | |
Control system | PLC | |
Thickness control points | 200 points | |
Temperature control | PLC module | |

|
