| Brand Name: | PUNAISGD |
| Model Number: | GCYFY-72B1.3 |
| Certification: | CE/ROHS/ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1km |
| Price: | negociate |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1000000km/month |
| Delivery Time: | 7days |
| Packaging Details: | woode drum |
| Type: | GCYFY-72B1.3 |
| Jacket Material: | PE/LSZH |
| Out Jacket Color: | Black |
| Strength Member Material: | FRP |
| Service: | OEM&ODM |
| Standard Length: | 2,000m/4000m |
| Number Of Fiber: | 72 |
| Oem Factory: | Yes |
| Operating Temperature: | -40°C to +70°C |
| Name: | Outdoor Fiber Optic Cable |
| Company Info. |
| guangzhou fiber cablepuls co ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

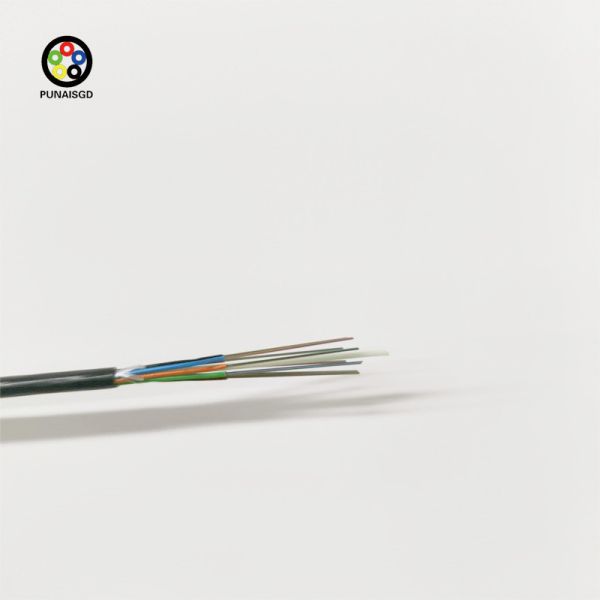

The Stranded Loose Tube Micro Air Blown Fiber Optic Cable GYFY is a specialized type of fiber optic cable designed for micro air-blown fiber installation systems. It features a stranded loose tube design, making it suitable for outdoor and indoor applications where flexibility and ease of installation are essential. Large core number air blowing cable GYFY cable structure is the phi 250 mu m optical fibers are jacketed high modulus material made of loose tube, the loose casing pipe is filled with waterproof compound, loose tube around the center of the strengthen core twist synthetic compact round cable core, the cable core gap mid to moisture-proof waterproof yarn, then extruding PE sheathed cable.
Type | O.D. (mm) | Weight (Kg/km) | Tensile strength Long/short term (N) | Crush Long/short term (N/100mm) | Number of tubes/fibre count per tube |
|---|---|---|---|---|---|
GCYFY-12B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 2/6 |
GCYFY-24B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 4/6 |
GCYFY-36B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 6/6 |
GCYFY-24B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 2/12 |
GCYFY-48B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 4/12 |
GCYFY-72B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 6/12 |
GCYFY-96B1.3 | 6.1 | 33 | 0.3G/1.0G | 150/500 | 8/12 |
GCYFY-144B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 12/12 |
GCYFY-192B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 16/12 |
GCYFY-216B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 18/12 |
GCYFY-288B1.3 | 9.3 | 80 | 0.3G/1.0G | 150/500 | 24/12 |
GCYFY-144B1.3 | 7.3 | 42 | 0.3G/1.0G | 150/500 | 6/24 |
GCYFY-192B1.3 | 8.8 | 76 | 0.3G/1.0G | 150/500 | 8/24 |
GCYFY-288B1.3 | 11.4 | 110 | 0.3G/1.0G | 150/500 | 12/24 |
GCYFY-432B1.3 | 11.4 | 105 | 0.3G/1.0G | 150/500 | 18/24 |
GCYFY-576B1.3 | 13.4 | 140 | 0.3G/1.0G | 150/500 | 24/24 |
Note: G is the weight of optical cable per km.
|
