SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet

Categories	Pneumatic Solenoid Valve
Brand Name:	NBSANMINSE
Model Number:	SBF30
Place of Origin:	CHINA
MOQ:	10PCS
Supply Ability:	10000PCS
Delivery Time:	5-30days
Packaging Details:	Box
Certification:	ISO9001
Price:	Negotiation
Payment Terms:	L/C,T/T
Inner volume:	5.5 cm³
Pull-out:	33force N
Min.curve radius of workpiece:	30 mm
Material & Hardness:	U - PU,70
Connection thread:	G2F - G1/4 female thread

Contact Now

Add to Cart

Company Info.

Ningbo Sanmin Import And Export Co.,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

SBF Series 1.5 Bellows Suction Cup Special for Metal Sheet

Features

◇ 1.5 Bellows

◇ PU material

◇ Internal large area support structure

◇ Various sizes for option

Advantages

◇ Easy to fit uneven surface of workpiece, and has buffer effect

◇ Excellent wear resistance and oil resistance, long lifetime

◇ Effectively increase the friction force between suction cups and workpieces

◇ Suitable for workpieces with different sizes and shapes

Applications

◇ Handling metal sheet in high speed, short cycle time

◇ Handling metal sheet and aluminum plate without deformation

◇ Special pattern slot design of suction cup prevents from slipping

during handling oily sheet metal, ensuring accurate positioning

◇ Used in automotive stamping metal parts handling system

Structure

◇1.5 Bellows, large compressed stroke

◇Suction cup and fitting are one-piece structure design

SBF 50 U-G3F

① ②③ ④

①Series

②Diameter

③Material&Hardness

④Connection thread

SBF

30-φ32mm

U-PU 70

G2F-G1/4 female thread

40-φ42mm

G3F-G3/8female thread

50-φ51.5mm

G2M-G1/4male thread

60-φ64mm

M10M-M10×1.5male thread

80-φ84mm

RA-Rectangular adapter

100-φ103mm

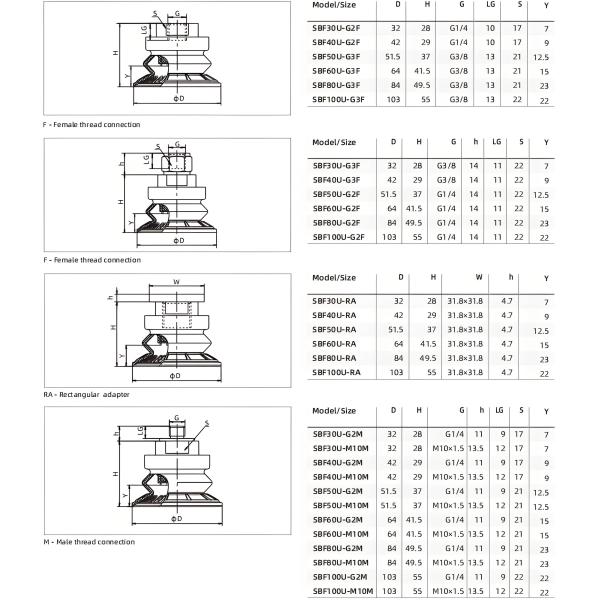

Selection-Model(Connecton thread)

Model

Connection thread
G2M

M10M

G2F

G3F

RA-Rectangular adapter

SBF30U-□

SBF30U-G2M

SBF30U-M10M

SBF30U-G2F

SBF30U-G3F

SBF30U-RA

SBF40U-□

SBF40U-G2M

SBF40U-M10M

SBF40U-G2F

SBF40U-G3F

SBF40U-RA

SBF50U-□

SBF50U-G2M

SBF50U-M10M

SBF50U-G2F

SBF50U-G3F

SBF50U-RA

SBF60U-□

SBF60U-G2M

SBF60U-M10M

SBF60U-G2F

SBF60U-G3F

SBF60U-RA

SBF80U-□

SBFBOU-G2M

SBF80U-M10M

SBF80U-G2F

SBFBOU-G3F

SBF80U-RA

SBF100U-□

SBF100U-G2M

SBF100U-M10M

SBF100U-G2F

SBF100U-G3F

SBF100U-RA

Technical parameters

Model

Pull-outforce N

Inner volume
cm³

Min.aurve radius of workpiece
mm

Weight
g

Recommended hose dia
mm

MPQ
pcs

SBF30

5.5

18.5

SBF40

7.0

20.0

SBF50

103

11.5

40.0

SBF60

145

22.0

45.0

SBF80

235

60.0

75.0

SBF100

380

98.0

118.0

◇ Note: Testing vacuum level -60kPa,workpiece with smooth and clean surface.

The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surface.

◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
