| Categories | Tube Bundle |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | Fixed Tubesheet Shell & Tube Heat Exchanger |
| Certification: | ASME Sec VIII Div 1 U Stamp |
| Place of Origin: | China |
| MOQ: | 1 SET |
| Price: | USD 50,000 - USD 1,000,000 PER SET |
| Payment Terms: | MoneyGram, T/T, D/P, D/A, L/C, Western Union |
| Supply Ability: | 60 SETS/MONTH |
| Delivery Time: | 60 DAYS TO 180 DAYS |
| Packaging Details: | Waterproof Taping / Waterproof Banding, Nitrogen Sealed / Nitrogen Filled Packaging / Nitrogen Inerting / Nitrogen Purging |
| Heat Exchanger Type: | Fixed Tube Sheet Heat Exchanger |
| SHEKK: | ASME SA516M GR.485 |
| REDUCER: | ASME SA420 WPL6 |
| TUBESHEET: | ASME SA240M TP316L |
| FLANGE: | ASME SA350M LF2 |
| PIPES: | ASME SA333 GR.6 |
| Company Info. |
| YUHONG HOLDING GROUP CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

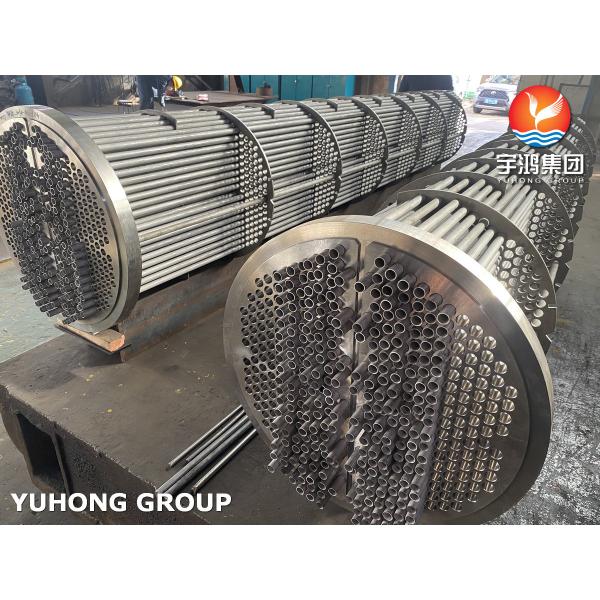

TEMA AEL Heat Exchanger: CS/SS304 Tubes with Expansion Joint ASME Sec VIII Div 1 U Stamp
YUHONG are leaders in the design and manufacture of high-quality heat exchangers for a wide range of industrial applications. With decades of experience, our expertise lies in delivering reliable, customized thermal solutions that meet the most demanding global standards, including ASME Code Section VIII Division 1.
Our products, including the TEMA Type AEL(Fixed Tubesheet) Shell & Tube Heat Exchanger, are made with precision, ensuring superior performance, durability, and safety.
Advantages of Fixed Tubesheet Heat Exchangers
Fixed tubesheet heat exchangers are one of the most widely used designs in industrial applications due to their simplicity, cost-effectiveness, and robust construction. Below are the key advantages of this type of heat exchanger:
| Simple and Economical Design |
| Leak-Free Construction |
| Durable and Reliable |
| Wide Material Options |
| Compact and Space-Efficient |
| Versatile Applications |
Features of TEMA Type AEL Heat Exchanger
The TEMA Type AEL Heat Exchanger is a fixed tubesheet shell and tube design characterized by its versatility and efficiency. Below are the key features and benefits of this specific type:
| Feature | Description |
|---|---|
| Fixed Tubesheet Design | Both ends of the tube bundle are securely welded to the shell. |
| AEL Configuration | The AEL type features a removable channel cover, a single-pass shell, and a single-pass tube side. |
| Compact Single-Pass Shell | Applications where fluid flows in a single pass through the shell, optimizing flow distribution and heat transfer. |
| ASME Code Compliance | ASME Section VIII Division 1 standards, ensuring safety, durability, and reliability in high-pressure environments. |
Common Equipment Names for Shell & Tube Heat Exchangers
Shell and tube heat exchangers, including the TEMA Type AEL Fixed Tubesheet Heat Exchanger, are highly versatile and commonly used in a variety of industrial equipment. Below are some examples of their applications:
| Equipment Name |
|---|
| Steam Generator |
| Condensers |
| Reboilers |
| Coolers |
| Evaporators |
| Feedwater Heaters |
| Oil Coolers |
| Air Preheaters |
| Gas Coolers |
| Process Heat Exchangers |
AEL Heat Exchanger for High-Pressure Clean Fluids
The AEL-type fixed tubesheet exchanger excels in high-pressure (up to 30 bar shell/300°C) clean fluid applications like #feedwaterheaters, featuring compact stainless-steel/carbon steel construction, minimal maintenance, and ASME compliance for thermal stability in constrained systems.
|
