Plastic PVC Water Pipe Making Extruder Machine Fabrication Equipment

Plastic PVC Water Pipe Making Extruder Machine Fabrication Equipment

Short desciption

PVC pipes are widely used for agricultural water supply system, sewer system, waters discharge systems for civil and industrial buildings, cable conduits, protection sheathing for electric cables, etc.

Φ16mm-Φ800mm series plastic PVC pipe making machine extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness.

This line is composed of conical twin screw extruder, Vacuum calibration tank, haul-off(take-off) machine ,motors, cutter and stacker etc.

The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency.

Tech Features & Advantages
1.The production line is used in producting pvc reinforced pipe, which is widely used in the fields of industry,agriculture, forest, architecture etc.
2.Completed with two single screw extruders, one yarn braid machine and other auxiliary.
3.With different dies,it can produce different soft pipes.The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid.
4.Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.

Producting process
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

Specifications:

Product detail
Extruder Machine
PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

Mould

The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.

Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.

Haul-off Unit
The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

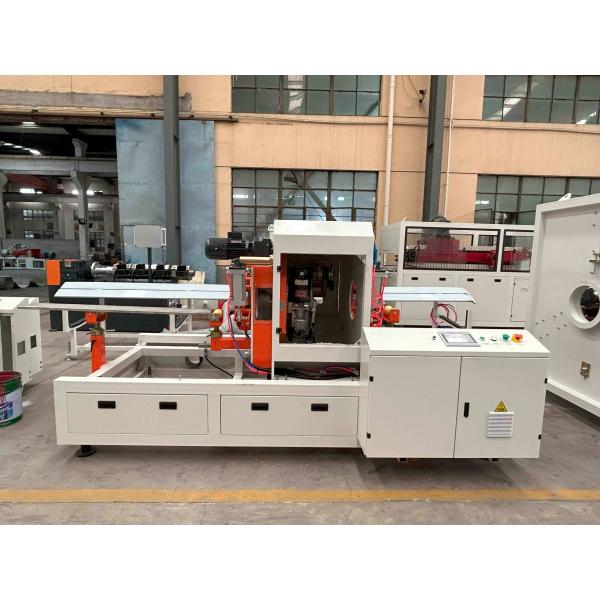

Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.

Technical Features:

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. Its shape is advanced foreign multilateral anti-deformation structure. The cover is made of high quality casting aluminum alloy. The pipeline adopts the design of double loop pipeline, realizing non-stop pipeline clean and function of temperature control.
Caterpillar haul-off structure with sliding tempered glass is beautiful and practical. Traction device with V type rubber block caterpillar and controlled by imported inverter can steadily haul pipe. It also features compact structure and free-maintenance.

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case

Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.

Our factroy

Our Exhibition

Our Goods Shipping
