HE400VG 7+7 blades 67.30/93.00mm turbo billet/milling/aluminum 2618 compressor wheelfor 3775687, 3775690, 3775692, 3792914, 3792916, 3795154, 5350609, 5350636, 5350637, 2882083, 4105460 ISL engine ​

1.Model:HE400VG Forward

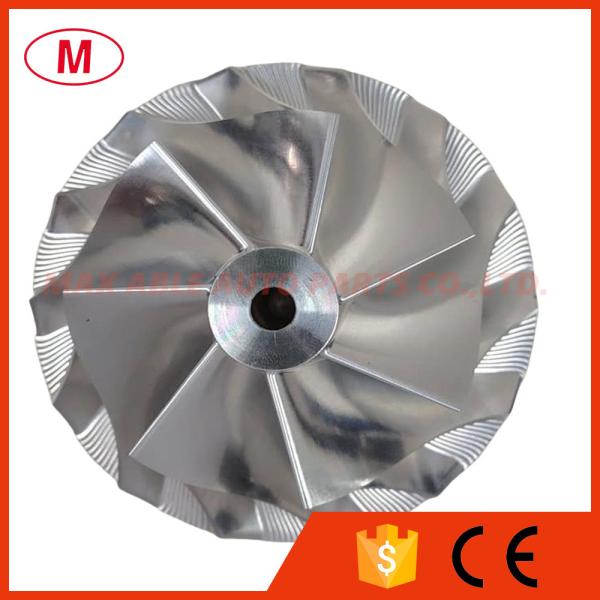

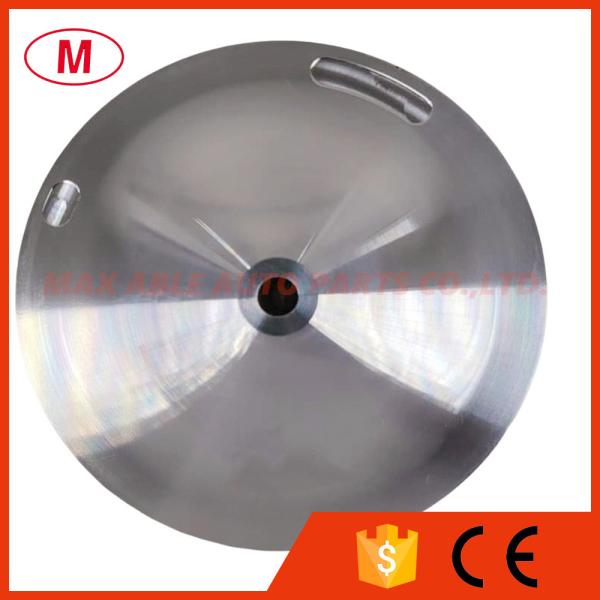

2.HE400VG 7+7 blades 67.30/93.00mm turbo billet/milling/aluminum 2618 compressor wheel

for 3775687, 3775690, 3775692, 3792914, 3792916, 3795154, 5350609, 5350636, 5350637, 2882083, 4105460 ISL engine
3.Size:

Nose diameter:20.05mm

Inducer:67.30mm

Exducer:93.00mm

Tip height:6.40mm

Superback:6.27mm

Overall height:44.90mm

Bore size:7.00mm

bore type:through

Trailing angle:40 degree

Cutback:3.5mm

SP height angle:1.00

Splitter height:18.20mm

Blade height:34.25mm

7+7 blades

Tapered tip angle:0 degree

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

We can produce as your requirements.

All the compressor wheels have been balanced

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
