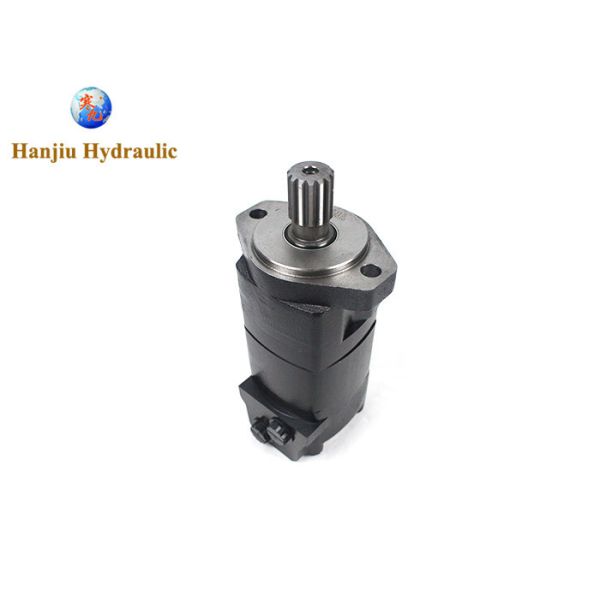

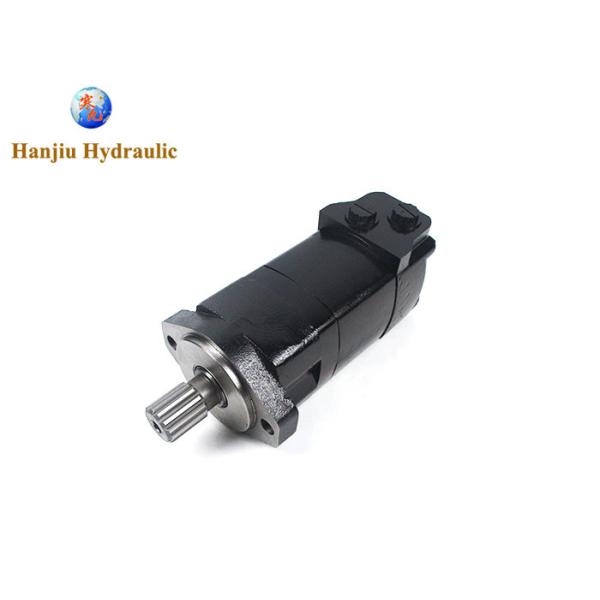

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

Categories Orbit Hydraulic Motor
Brand Name: HANJIU
Model Number: BMK2-315
Certification: CE
Place of Origin: China
MOQ: 100 Pieces
Price: 90 USD
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability: 10000 pieces per year
Delivery Time: 35 - 45 work days
Packaging Details: 1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type: Low speed high torque motor
Material: Cast iron
Displacement: 315ml/r
Flange: 2 Bolt SAE A Flange
Port size: Manifold Ports
Drain line: 7/16-20UNF
Speed: 246 - 365 rpm
Torque: 765 - 885 nm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor


Hanjiu technology produce BMK2 series hydraulic disc motors, matching Eaton Charlynn 2000 Motor

which are used on sugarcane harvesters, the same specification ,same performance, but in a cost effective,

to cut your costs down, optimize your supply chain


Quick review:

Model No.:CB11480558 AXT13783


typeBMK2 MOTOR eaton 2000 series motor
speed385 - 577 rpm
torque540 - 665 nm
mounting
2 Bolt SAE A Flange
shaftspline shaft



Main specifiction:


Main Specifications:
TypeBMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2
6580100125160200250315400475
Geometric displacement
(cm3 /rev.)
6580100.9129.8156.8193.4242.5304.3390.8485
Max. speed (rpm)cont.835800742576477385308246191153
int.990980924720713577462365287230
Max. torque (N·m)cont.185235295385455540660765775845
int.245345445560570665820885925930
Max. pressure drop (MPa)cont.20.521212120.520.520.52115.512
int.27.5313131262626241714
peak313131313131313120.517
Max. flow (L/min)cont.55657575757575757575
int.65809595115115115115115115
Weight (kg)9.29.49.71010.210.51111.51212.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.





Our advantages

1. Technical strength and product quality assurance

ISO 9001 quality management system certification;Advanced production equipment and processes

2. Production capacity and delivery reliability

having the ability of mass production to meet the demand of customers' large-volume orders

having an efficient logistics system to ensure that products are delivered to customers on time

3. Industry experience and customized service capability

having rich experience in the Orbital motor industry and be familiar with the specific needs and standards of the industry

4.After-sales service and technical support system

5. R&D innovation capability and industry trend tracking

6. Price competitiveness and cost optimization
