G3/4 Gas-Filled Type Rubber Air Bellows FS120-9 Contitech W01M586165 Firestone Air Spring

G3/4 Gas-Filled Type Rubber Air Bellows FS120-9 Contitech W01M586165 Firestone Air Spring

Technical Data: Single Convoluted Type Air Spring

Top cover plate diameter: Ø135mm

Air inlet: G3/4

Threaded holes in the top cover: 2XM8X1.25mm

Center distance between top cover threaded holes: 70mm

Distance between top cover threaded hole and air inlet hole: 35mm

Bottom cover plate diameter: Ø135mm

Rubber bellows max.outer diameter: Ø215mm

Maximum height: 115mm

Minimun height: 50mm

GUOMAT NO.1B1209-G3/4 Reference Numbers

Refer to Firestone W01M586165

Refer to Firestone W01 M58 6165

Refer to Firestone W01-M58-6165

Refer to Contitech FS120-9

Refer to Contitech FS 120-9

Refer to Contitech FS120-9 G3/4

Refer to Contitech FS 120-9 G3/4

Refer to Contitech FS120-9 G3/4 M8

Refer to Contitech FS 120-9 G3/4 M8

Refer to Dunlop(FR) 8''x1 S08101

Refer to Bosch 822419003

Refer to Festo EB-215-80

Refer to Norgren PM/31081

Refer to Norgren 8X1

Refer to Weforma WBE 300-E1

Refer to Airtech 140293

Refer to Airtech 111003

Refer to Airtech 1B-190FB

Refer to Megatech 1S120-9 3/4 M8

Dynamic Characteristics at 115 mm Design Height
(Required for Airmount isolator design only)

Force Table

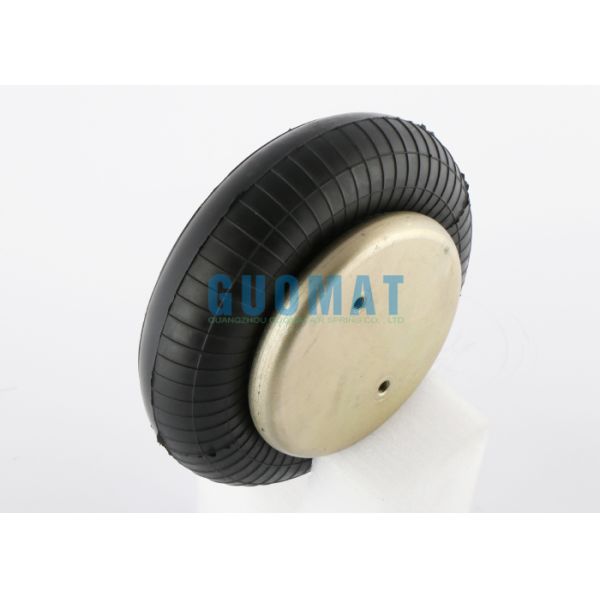

The Real Pictures

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
