| Categories | Woven Fiberglass Cloth |
|---|---|
| Brand Name: | SUNTEX |
| Model Number: | GF430P |
| Certification: | ISO9001; SGS M0 Certificate |
| Place of Origin: | China |
| MOQ: | 20 rolls |
| Payment Terms: | T/T; L/C, Paypal... |
| Supply Ability: | 500000sqm/month |
| Delivery Time: | 5-20 days |
| Packaging Details: | Each roll in carton, several cartons in a pallet |
| Application: | Fire Blanket |
| Weight: | 430g/sq.mtr |
| Working temperature: | 550 C |
| Property: | Fire resistant |
| Color: | Off-white |
| Yarn: | E-glass |
| Company Info. |
| Suntex Composite Industrial Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

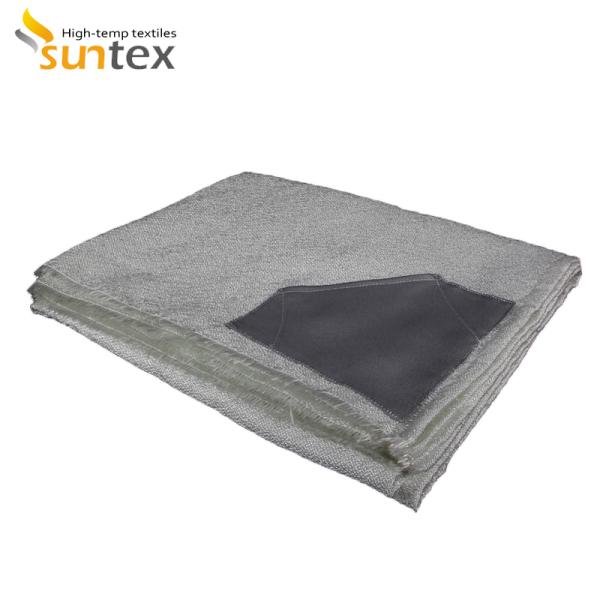

0.4mm Fiberglass Fabric Fireproof Woven Fiberglass Cloth M0 Fire Blanket Material
GF430P is a medium weight woven fiberglass fabric. It’s a premium grade loomstate glass fabric.
USA reference No. 3732.
GF430P is designed for the manufacturer of thermal insulation covers,fire curtain/blankets ,padding and other fire control system.
GF430P is also suitable for coating with difference elastomers and polymers.
Technical Data:
| PROPERTY DATA | |||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 20 g/m2 | 12.6 ± 0.58 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.02 mm | 0.0145 ± 0.0008 inch | ASTM D1777-96 |
| Standard width | 101.6 ± 1 cm | 40 ± 0.39 inch | ASTM D3776-96 |
| 155 ± 1 cm | 61 ± 0.39 inch | ||
| Tensile strength | |||
| Warp | 4816 N/5 cm | 550 lbf/inch | ASTM D5034-95 |
| Weft | 3503 N/5 cm | 400 lbf/inch | ASTM D5034-95 |
| Temp resistance | 5500C | 10000F | |
Advantages:
1.Good fire resistant.M0 classification.
2.Flexible,soft, easy to be fabricated
5.Bears temperature 550C degree.
Main applications:
1.Fire blankets.
2.Heat protection.
3.Base materials for coating.
Guarantee:
All Suntex’s customers are covered by below warranty:
|
