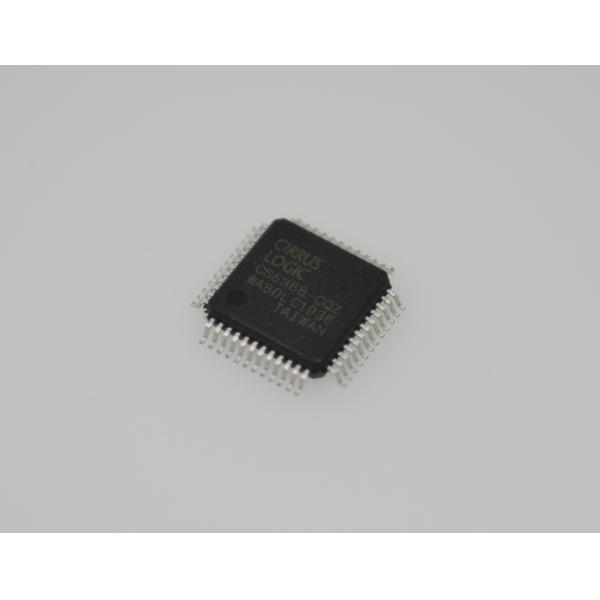

CS5368-CQZ 8-Channel 24-Bit ADC 114dB SNR 192kHz Sampling I2S/TDM 3.3V LQFP-48 -40°C to +85°C

CS5368-CQZ 8-Channel 24-Bit ADC 114dB SNR 192kHz Sampling I2S/TDM 3.3V LQFP-48 -40°C to +85°C

Features
Advanced Multi-bit Delta-Sigma Architecture
24-Bit Conversion
114 dB Dynamic Range
-105 dB THD+N
Supports Audio Sample Rates up to 216 kHz

Selectable Audio Interface Formats

-Left-Justifed, 2S, TDM
-8-Channel TDM Interface Formats

Low Latency Digital Filter
Less than 680 mW Power Consumption
On-Chip Oscillator Driver

Operation as System Clock Master or Slave

Auto-Detect Speed in Slave Mode

Differential Analog Architecture

Separate 1.8 V to 5 V Logic Supplies forControl and Serial Ports
High-Pass Filter for DC Offset Calibration
Overflow Detection
Footprint Compatible with the 4-ChannelCS5364 and 6-Channel CS5366

Additional Control Port Features
Supports l2C or SPi™m Control interface perspecifications on page 17 and page 18
Individual Channel HPF Disable
Overflow Detection for Individual Channels
Mute Control for individual Channels
Independent Power-Down Control per ChannelPair

Applications

1.Professional Audio Equipment
Multi-Microphone Array Systems: 8-channel synchronous sampling for beamforming inconference systems/smart speakers
High-End Recording Devices: 24-bit/192kHz + 114dB SNR for studio-grade audio quality

Audio Interfaces: 12S/TDM compatibility for DSP/FPGA digital processing
2.Industrial Test & Measurement
Acoustic Analyzers: Multi-channel vibration/noise synchronous acquisition

Medical Ultrasound Front-Ends: High dynamic range signal capture
3. Automotive Electronics
Active Noise Cancellation (ANC): Real-time multi-point cabin noise sampling

In-Car Surround Sound: Supports multi-channel HD audio decoding
