| Categories | Armoured Electrical Cable |
|---|---|
| Brand Name: | Zhongdong |
| Model Number: | KYJV22 N2XBY |
| Certification: | ISO,VDE,ISO,TUV |
| Place of Origin: | Hebei，China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100KM/Week |
| Delivery Time: | 10 Work days |
| Packaging Details: | Wooden Steel Drums |
| Conductor Material: | Copper |
| Insulation Material: | XLPE |
| Application: | Industrial |
| Jacket: | PVC |
| Color: | Optional |
| cores: | 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
| Company Info. |
| Zhongdong Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
This product is suitable for use in control, monitoring circuits, and protection circuits in circuits with a rated voltage of 450/750V and below

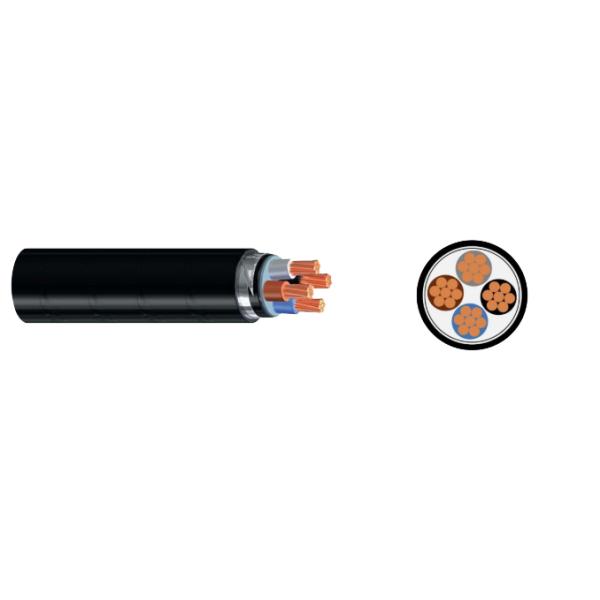

Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)
Insulation: Polyvinyl chloride (PVC)
Filler:Polypropylene(PP) mesh filling rope
Armouring: Galvanized steel tape
Outer sheath: Polyvinyl chloride (PVC)
Voltage Rating Uo/U: 450/750V
Temperature Rating
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -15℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)
No of core: 2-61 core
Nominal cross-section of conductor: 0.5-10mm2
| Specs | Conductor diameter | Nominal thickness of insulation | Nominal thickness of sheath | Approximate outer diameter of cable | Approximate cable weight |
| 8×0.5(B) | 0.90 | 0.6 | 1.5 | 13.9 | 274.6 |
| 8×0.75 | 1.02 | 0.6 | 1.5 | 14.3 | 302.5 |
| 8×0.75(B) | 1.10 | 0.6 | 1.5 | 14.5 | 311.4 |
| 8×1 | 1.16 | 0.6 | 1.5 | 14.8 | 333.5 |
| 8×1(B) | 1.29 | 0.6 | 1.5 | 15.2 | 347.3 |
| 8×1.5 | 1.41 | 0.7 | 1.5 | 163 | 418.3 |
| 8×1.5(B) | 1.56 | 0.7 | 1.5 | 16.9 | 435.3 |
| 8×2.5 | 1.76 | 0.8 | 1.5 | 18.4 | 557.6 |
| 8×2.5(B) | 2.04 | 0.8 | 1.5 | 19.2 | 584.7 |
| 8×4 | 2.22 | 0.8 | 1.7 | 20.5 | 733.4 |
| 8×4(B) | 2.55 | 0.8 | 1.7 | 21.4 | 766.4 |
| 8×6 | 2.74 | 0.8 | 1.7 | 22.2 | 931.7 |
| 8×6(B) | 3.10 | 0.8 | 1.7 | 233 | 971.1 |
| 8×10 | 4.00 | 1.0 | 1.7 | 28.3 | 1454.2 |
| 10×0.5 | 0.85 | 0.6 | 1.5 | 14.8 | 310.5 |
| 10×0.5(B) | 0.90 | 0.6 | 1.5 | 15.0 | 317.8 |
| 10×0.75 | 1.02 | 0.6 | 1.5 | 15.5 | 351.9 |
| 10×0.75(B) | 1.10 | 0.6 | 1.5 | 15.8 | 362.8 |
| 10×1 | 1.16 | 0.6 | 1.5 | 16.1 | 390.1 |
| 10×1(B) | 1.29 | 0.6 | 1.5 | 16.6 | 406.8 |
| 10×1.5 | 1.41 | 0.7 | 1.5 | 17.9 | 494.1 |
| 10×1.5(B) | 1.56 | 0.7 | 1.5 | 185 | 514.9 |
| 10×2.5 | 1.76 | 0.8 | 1.7 | 20.8 | 685.3 |
| 10×2.5(B) | 2.04 | 0.8 | 1.7 | 21.7 | 719.4 |
| 10×4 | 2.22 | 0.8 | 1.7 | 22.7 | 881.5 |
| 10×4(B) | 2.55 | 0.8 | 1.7 | 23.7 | 921.9 |
| 10×6 | 2.74 | 0.8 | 1.7 | 24.7 | 1127.4 |
| 10×6(B) | 3.10 | 0.8 | 1.7 | 25.9 | 1175.7 |
| 10×10 | 4.00 | 1.0 | 2.0 | 32.3 | 1816.9 |
| 12×0.5 | 0.85 | 0.6 | 1.5 | 15.2 | 333.5 |
| 12×0.5(B) | 0.90 | 0.6 | 1.5 | 15.4 | 341.6 |
| 2×0.75 | 1.02 | 0.6 | 1.5 | 15.9 | 380.6 |
| 12×0.75(B) | 1.10 | 0.6 | 1.5 | 16.2 | 392.7 |
| 12×1 | 1.16 | 0.6 | 1.5 | 16.5 | 424.5 |
| 12×1(B) | 1.29 | 0.6 | 1.5 | 17.0 | 442.7 |
| 12×1.5 | 1.41 | 0.7 | 1.5 | 18.4 | 542.5 |
| 12×1.5(B) | 1.56 | 0.7 | 1.5 | 19.0 | 565.1 |
Q1. What is a control cable?
A1. Control cable is a multi-core cable designed to transmit signals and low-voltage control commands in automation systems, machinery, and industrial applications.
Q2. What are the common types of control cables?
A2.KVV: Basic PVC-insulated, unarmored.
KVV22: Steel tape armored for mechanical protection.
KVVP: Shielded (copper braid) for EMI resistance.
KYJV: Higher temperature resistance (XLPE insulation).
Q3. When should I use armored control cables?
A4.Choose KVV22 (steel tape armor) for underground or high-impact environments. Use KVV32 (steel wire armor) for vertical installations or tension-heavy scenarios.
Q4.Are you a factory or trading company?
A1: We are a manufacturer with more than 20 years cable production expreience.
Q5.What is your payment term?
A5.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q6.Do you accept OEM service?
A6.Yes,we wil customize the products according to your specific requirements
|
