| Categories | Stainless Steel Sheets |
|---|---|
| Brand Name: | Baosteel,TISCO，WISCO，CHINA STEEL UNION |
| Model Number: | Thickness 0.1mm-50mm, or customized |
| Certification: | ISO9001,SGS, ASTM, ASME |
| Place of Origin: | CHINA |
| MOQ: | 1000Kilogram |
| Price: | USD256-830 |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 800000KG/15Days |
| Delivery Time: | 2-3Days |
| Packaging Details: | Steel strip + kraft paper + fumigated wooden box export exquisite packaging |
| Protection: | PVC film, inner paper |
| Tensile Strength: | 800mpa |
| Surface: | 2B, BA, No.4, HL, Mirror |
| Edge: | Mill Cut Edge |
| Size: | 1000*2000mm|1219*2438mm |
| Surface Treatment: | BA/2B/ NO.4/ 8K/ HL |
| Company Info. |
| JIANGSU CHINA STEEL UNION INDUSTRIAL CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

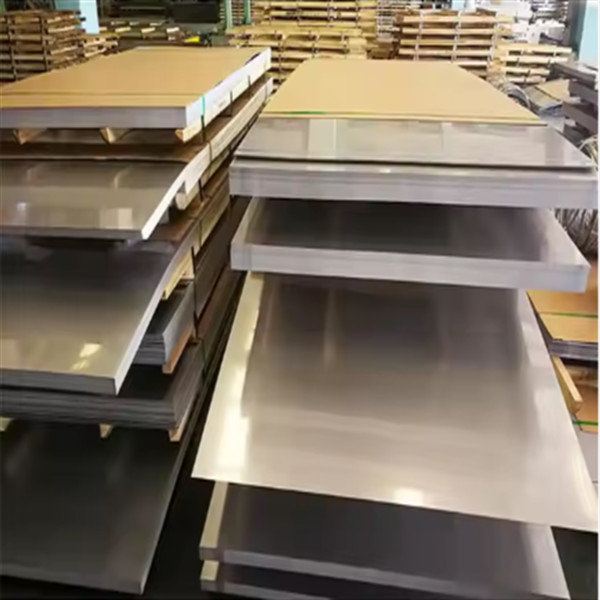

2205 Duplex Stainless Steel Sheet (0.8mm thick, 1220×2440mm) is a premium architectural material engineered for modern high-performance building exteriors, compliant with AS/NZS 4673 standards. Featuring a dual-phase microstructure, it combines superior strength with an anti-fingerprint coating to ensure aesthetic durability in urban environments.
The 0.8mm thickness delivers lightweight rigidity, while its high chromium/molybdenum/nitrogen content provides exceptional resistance to atmospheric corrosion, chloride exposure, and pollution. The anti-fingerprint finish maintains pristine appearance for facades, cladding, and decorative elements in high-traffic areas.
| Parameter | Details |
|---|---|
| Material | 2205 Duplex Stainless Steel (UNS S32205 / EN 1.4462) |
| Element Composition | Cr: 22–23%, Ni: 4.5–6.5%, Mo: 3.0–3.5%, N: 0.14–0.20%, Mn: ≤2%, Si: ≤1%, C: ≤0.03%, Fe: Balance |
| Dimensions | 1220mm x 2440mm (4ft x 8ft); Thickness: 0.8mm (±0.03mm tolerance) |
| Surface Finish | Anti-Fingerprint Coated (PVDF or Nano-Ceramic), No. 4 Brushed |
| Certifications | AS/NZS 4673, ASTM A240, ISO 12944 (corrosion resistance), LEED Compliance |
| Mechanical Properties | Tensile Strength: ≥620 MPa Yield Strength: ≥450 MPa Elongation: ≥25% Hardness: ≤290 HB |
| Applications | Building facades, curtain walls, elevator interiors, outdoor sculptures |
Advantages of Importing:
Architectural Durability: Duplex structure provides 2x higher strength than 304/316 steels, reducing material usage; Aesthetic Maintenance: Anti-fingerprint coating resists smudges/graffiti, cutting cleaning costs by 40%;
AS/NZS Compliance: Certified for Australian/New Zealand structural standards, ideal for coastal/urban projects; Custom Solutions: Pre-fabricated panels, perforated designs, curved profiles for bespoke architecture; Fast Logistics: 12-18 day delivery from Shanghai/Sydney ports with anti-scratch packaging.
Key Applications:
High-Rise Facades: Corrosion-resistant cladding for coastal/industrial skyscrapers; Transit Hubs: Durable panels for airports/metro stations/bus terminals; Luxury Interiors: Elevator linings/decorative columns/art installations; Sustainable Buildings: LEED-compliant projects using recyclable materials/low-maintenance surfaces.
|
