| Brand Name: | Fongko |
| Model Number: | FKEQU-410 |
| Certification: | CE |
| Place of Origin: | Shenzhen |
| MOQ: | 1 set |
| Price: | Negotiatable |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 3 days |

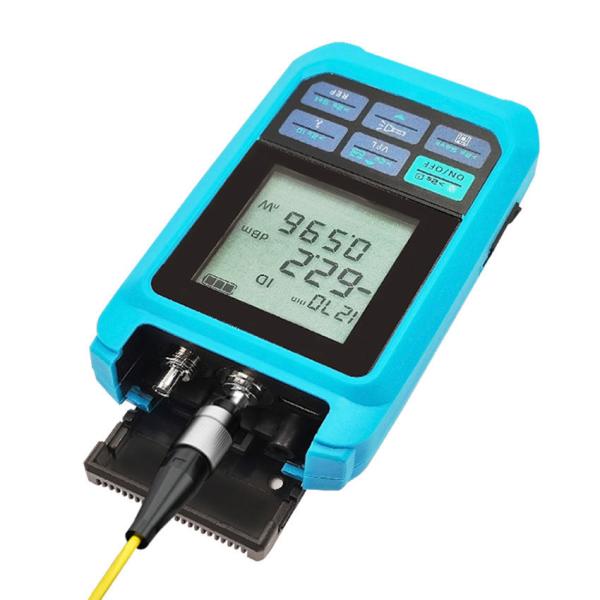

| Product name: | Fiber Optical Power Meter |
| Function: | Measuring optical power |
| Wavelength range: | 850/1270/1300/1310/1490/1550/1577/1625nm |
| VFL interface: | FC、SC、ST 2.5mm |
| Detector Type: | lnGaAs |
| Weight: | 95g |
| Company Info. |
| Shenzhen Fongko Communication Equipment Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Optical power meter is an instrument used to measure optical power. It can be used for both direct measurement of optical power and relative measurement of optical attenuation. It is an essential basic test instrument in the research, development, production, construction, and maintenance of optical fiber communication systems.
| OPM detector type | InGaAs |
| Interface | 2.5mm general interface |
| Wavelength | 850/1270/1300/1310/1490/1550/1577/1625nm |
| Measuring Range | Type T(-70~+10dBm) Type C(-50~+30dBm) |
| Resolution | 0.01dB |
| Accuracy | ±0.20dB |
| frequency identification | 270/330/1K/2KHz |
| Wavelength identification | Support (compatible light source required) |
| VFL interface | FC,SC,ST 2.5mm |
| VFL output | 10mW is standard(1~30mW for choice) |
| LED | Support |
| RU 45 cable | RJ-45 interface |
| Data Interface | Type-C interface |
| Battery | Built-in rechargeable lithium-ion battery(37V/450mAh) |
| Storage Temperature | -20~60℃,<90%RH |
| Usage Temperature | -10~60℃,<90%RH |
| Weight | 95g |
| Dimension | 102mmx62mmx29mm |
