16F OM5 MTP Fiber Patch Cord Male Female MPO Jumper Cable

Categories MPO MTP
Certification: RoHS, CE, ISO9001, VDE, CCC
MOQ: 1
Price: 9.16
Connection Structure: MPO-MTP
Material Shape: Round Wire
Allowed Lateral Pressure: 100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength: 1000N<10000N
Core: Multicore
Sheath Material: PVC or LSZH
Fiber Cores: 2,4,8,12,16,24,48,72,96,144
Fiber Type: OS2, Om1, Om2, Om3, Om4
Cable Jacket Color: Yellow, Blue, Green, Aqua, Red, Magenta, Beige
Insertion Loss: ≤0.3 dB (typical)
Return Loss: ≥45 dB
Operating Wavelength: 1310, 1510 nm
Exchangeability: ≤0.2 dB
Operating Temperature: -40~75 ºC
Storage Temperature: -45~85 ºC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

16F OM5 MTP Fiber Patch Cord Male Female MPO Jumper Cable

16F Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord





A patch cord is a fiber optic cable used to attach one device to another for signal routing.
MPO connector realizes high density interconnection by MT Ferrule with Fiber Ribbon.

Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector up to 12/24 fibers
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
arameterUnitFC, SC, LC/ Armoured fiber patch cord      ST, MU    MT-RJ, MPO    E2000
    SM    MMSM  MMSM  MMSM



    PCUPCAPCPCPCUPCPCPCUPCPCPCAPC























Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3































Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75































Operating wavelengthnm1310, 1510      1310, 1510    1310, 1510    1310, 1510
ExchangeabilitydB≤0.2      ≤0.2    ≤0.2    ≤0.2
VibrationdB≤0.2      ≤0.2    ≤0.2    ≤0.2
Operating temperatureºC -40~75      -40~75    -40~75    -40~75
Storage temperatureºC -45~85      -45~85    -45~85    -45~85
Cable diametermmφ3.0, φ2.0, φ0.9      φ3.0, φ2.0, φ0.9    φ3.0, φ2.0, φ0.9    φ3.0, φ2.0, φ0.9

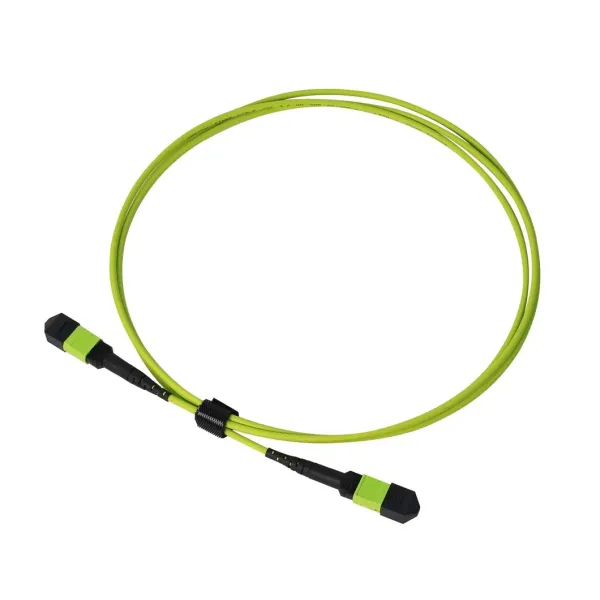

16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord
16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord

16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord

16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord



16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord
16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord
16f Elite Om5 MTP Ofnr Male Female Fiber Optic Fiber Jumper Cable Patch Cord
