BS4504 PN10/16 EPDM flanged foot valve

BS4504 PN10/16 EPDM flanged foot valve

Specifications

The foot valve is a valve which automatically opens and closes valve disc depending on the flow of the medium itself, and it is also used to prevent medium from flowing backwards. It is also called single direction valve, no-return valve and back pressure valve. It is a kind of automatic valve,Main function of check valve is to prevent the reverse flow of the medium, prevent the reversal of the pump and drive motor, and the discharge of the container medium.

BS4504 flanged Foot Valve Standard:

1.Production Size:2”-12” DN50-DN300mm

2.Pressure range:PN10,PN16

3.Design Standard:BS4504

4.Flange Standard:EN 1092-2,BS4504

5.Testing Standard:ISO 5208

BS4504 flanged Foot Valve main material of parts:

1.Body:EN-GJL-250

2.Filter:EN-GJL-250

3.Disc:EN-GJL-250/Carbon Steel

4.Seat:NBR,EPDM

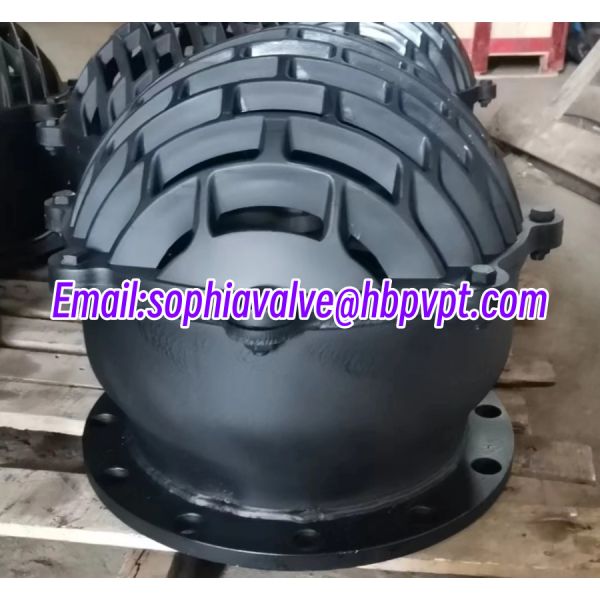

Product show

We manufacture gate valves, globe valves, check valves, butterfly valves, ball valves,foot valves.
