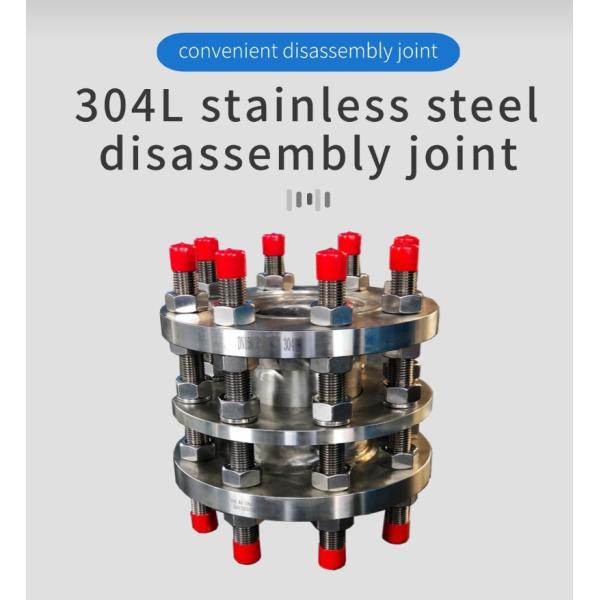

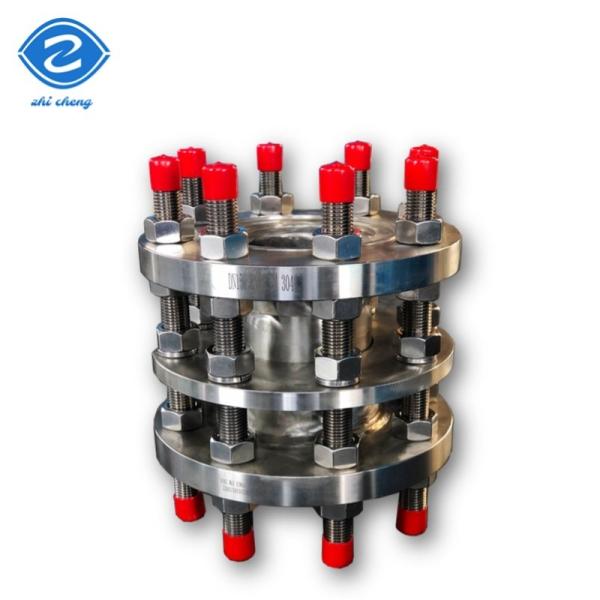

304, 316 stainless steel double flange disassembly joint

Video description

Product Description

The dismantling joint is a special type of piping fitting designed to accommodate

thermal expansion, contraction, and minor misalignments in piping systems while

providing safe and controlled range of motion. These joints are commonly used

in water, wastewater, and industrial applications.

Specification

No.	Name	Quantity	Material
1	Valve	1	QT450-10,Q235A,304,316etc.
2	Gasket	1	NBR
3	Follower	1	QT450-10,Q235A,304,316etc.
4	limited short pipe	1	Q235A,304,316etc.
5	stud	n	Q235A,35#,304,316etc.
6	nut	Tn	Q235A,20#,304,316etc.

Installation Instructions

Key Features:

1. Double Flange Connection:

• Equipped with flanges on both ends for easy installation and secure connection to

pipes, valves, or equipment.

2. Limit Rods or Tie Bars:

• Includes rods or bars that control the joint’s expansion and contraction within a

pre-determined range, protecting the system from excessive movement and damage.

3. Flexibility:

• Allows axial movement (expansion or compression), lateral displacement, and sometimes

angular deflection, depending on the design.

4. Material Construction:

• Typically made from ductile iron, carbon steel, stainless steel, or composite materials. The

seals or gaskets are often made of elastomers like EPDM, NBR, or PTFE to ensure a

leak-proof connection.

5. Corrosion Resistance:

• Coated with epoxy, rubber lining, or other protective layers to withstand harsh environmental

conditions.

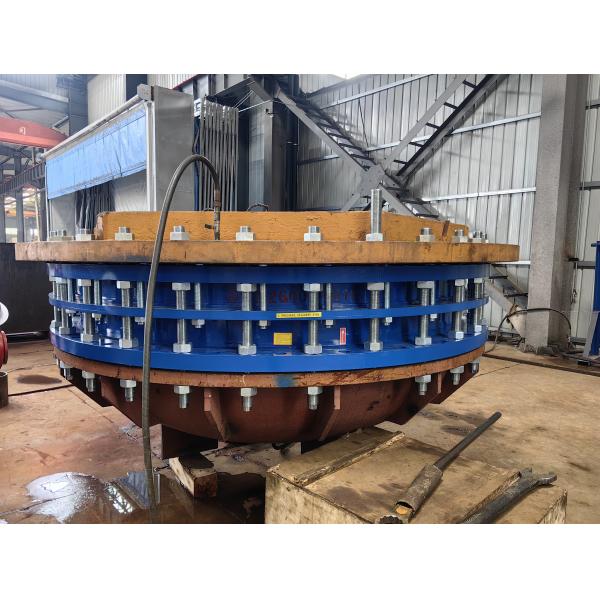

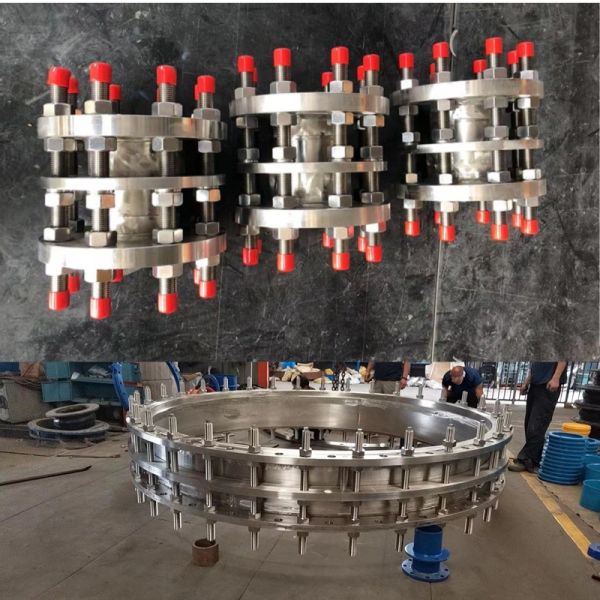

Product Exhibition

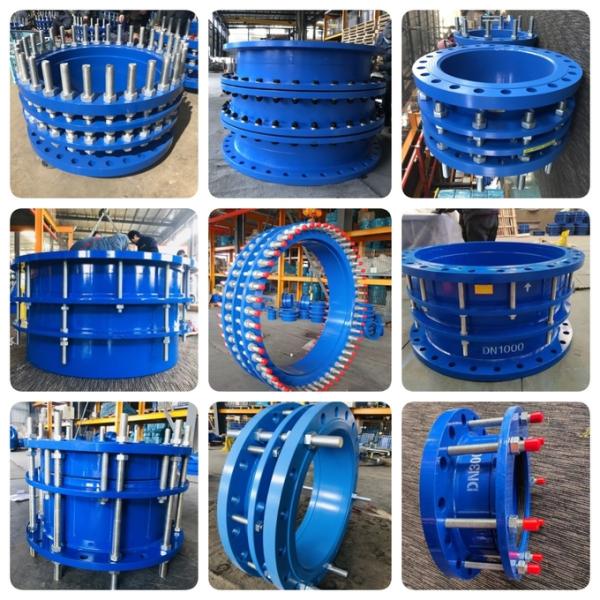

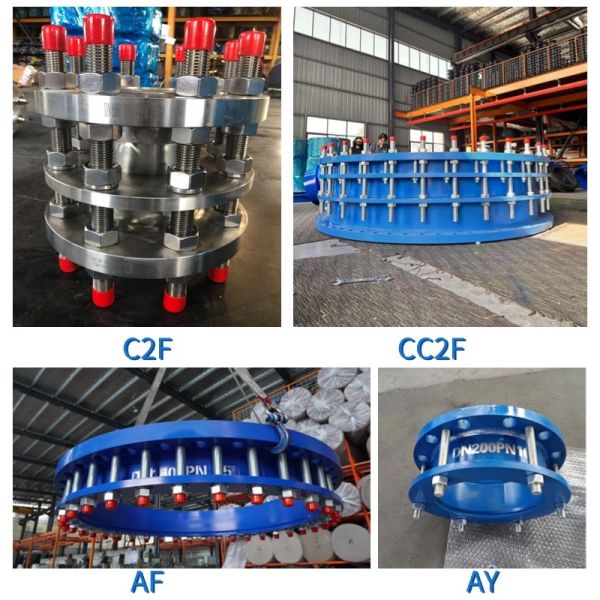

Dismantling joints Product Series

Crackdown detection

Technological process
The dismanting joint is suitable for pipelines with flanges on both sides. When installing,

the installation length of both ends
of the product and flanges can be adjusted. The diagonal fund-raising can tighten the

bolt of the pressure cap evenly, making it
an integral whole with a certain displacement. It is convenient to install and repair,

and it can be adjusted according to the size of the site.

Company Profile

Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete,

with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification

and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the

delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses,

double flange disassembly joints, flange adapters

Why Choose Us

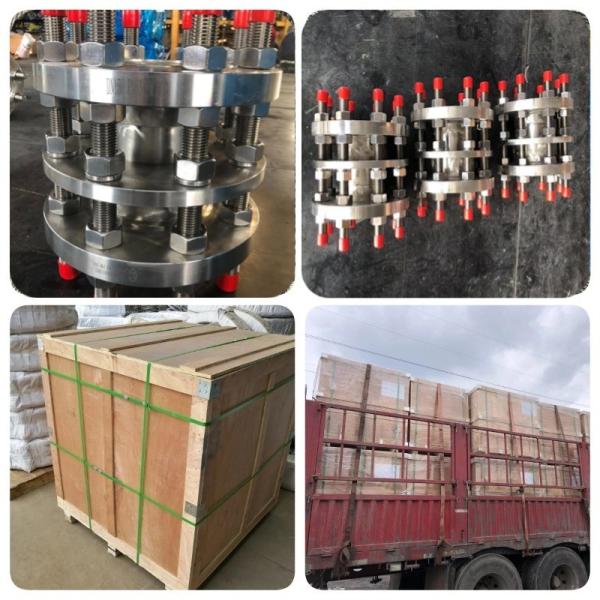

Packing & Delivery

Packing: Inner plastic film packing, outer
standard export wooden case packing.
Shipping: Courier company transport, air freight and sea transport. It depends on

your actual order details and quantity.

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according

to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
