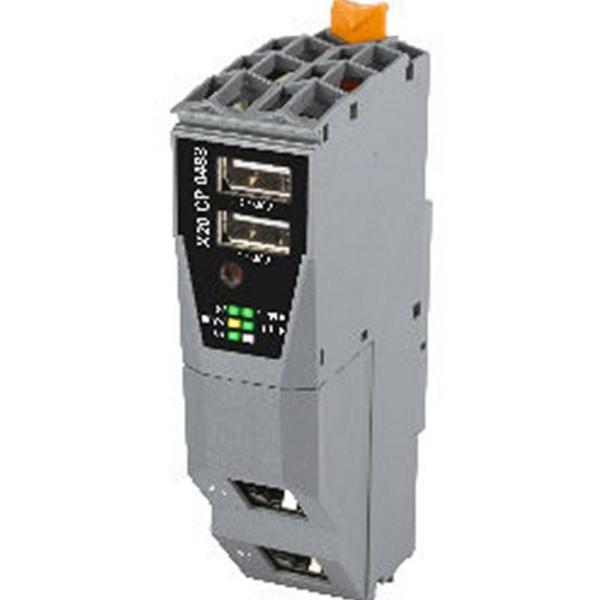

B&R X20CP0483 Compact - S Controller: High - Performance ARM Cortex - A9, 500 MHz, POWERLINK, Ethernet, USB - Ideal for Industrial Automation Solutions

Material Number and Core Hardware Configuration

The material number of this product is X20CP0483. It is a part of the X20 Compact - S family. Equipped with an ARM Cortex - A9 processor running at 500 MHz and an integrated I/O processor, it offers substantial computing power. It has 256 MB DDR3 SDRAM for smooth operation and a 1 GB onboard flash drive for data storage. The inclusion of 32 kB FRAM for remanent variables storage further enhances its data - handling capabilities.

Physical Design Features

The X20CP0483 stands out for its physical design. It is fanless and battery - free, which means it is maintenance - free, reducing the total cost of ownership. Its extremely compact size makes it suitable for applications where space is at a premium. This design not only saves space but also ensures reliability as there are no moving parts like fans that could potentially fail.

Communication and Expansion Capabilities

This controller offers a rich set of communication options. POWERLINK with onboard poll response chaining, Ethernet, and 2x onboard USB ports enable seamless connectivity. It also has an RS232 interface. Additionally, an optional RS485 or CAN interface is available. For applications with more complex requirements, it can be modularly expanded with one or two X20 interface slots, allowing the use of the entire X20 fieldbus interface product range.

Attribute Classification	Specific Attribute	Details
Basic Information	Model Number	X20CP0483
	Brand	B&R
	System Module Type	Controller
	B&R ID Code	0xE952
	Cooling Method	Fanless
	Status Indicators	CPU function, Ethernet, POWERLINK
Processor	Type	ARM Cortex - A9
	Clock Frequency	500 MHz
	L1 Cache (Data Code)	32 kB
	L1 Cache (Program Code)	32 kB
	L2 Cache	512 kB
	Integrated I/O Processor	Can process I/O data points in the background
Memory	Standard Memory (RAM)	256 MB DDR3 SDRAM
	Application Memory (Type)	1 GB eMMC flash memory
	Application Memory (Data Retention Period)	10 years
	Application Memory (Guaranteed Writable Data Amount)	40 TB
	Application Memory (Writable Data Amount in 5 Years)	21.9 GB/day
	Application Memory (Guaranteed Erase/Write Cycles)	20,000 times
	Application Memory (Error Correction Code, ECC)	Yes
Interfaces	Ethernet	1 piece, RJ45 shielded interface, maximum transmission rate 10/100 Mbit/s, physical layer 10BASE - T/100BASE - TX, supports half-duplex, full-duplex, auto-negotiation, auto-MDI/MDIX, maximum segment length between two stations is 100 m
	POWERLINK V2	1 piece, Type 6, RJ45 shielded interface, transmission rate 100 Mbit/s, physical layer 100BASE - TX, supports half-duplex in POWERLINK mode, full-duplex in Ethernet mode, supports auto-negotiation, auto-MDI/MDIX, maximum segment length between two stations is 100 m
	USB	2 pieces, Type A interface, USB 1.1/2.0 standard, maximum output current of each interface is 0.2 A
	X2X Link	1 piece, master node
	Interface Module Slots (X20BB5x)	0 pieces
	Interface Module Slots (X20BB6x)	1 piece
	Interface Module Slots (X20BB7x)	2 pieces
Diagnostics	CPU Function Diagnosis	Through LED status indicator
	Ethernet Diagnosis	Through LED status indicator
	POWERLINK Diagnosis	Through LED status indicator
	Temperature Diagnosis	Through software register
Support	Controller Redundancy	No
	Storage Health Data Support	Yes
	ACOPOS Support	Yes
	Visual Components Support	Yes
Power Supply	Power Consumption	2.9 W
	Additional Power Consumption Caused by Actuators (Resistive)	None
Certifications	CE	Yes
	UKCA	Yes
	ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc, IP20, Ta (see X20 user manual), FTZÚ 09 ATEX 0083X
	UL	cULus E115267 (Industrial control equipment)
	HazLoc	cCSAus 244665 (Process control equipment for hazardous locations, Class I, Division 2, Groups ABCD, T5)
	DNV	Temperature: B(0 to 55°C); Humidity: B(up to 100%); Vibration: B(4 g); EMC: B(bridge and open deck)
	CCS	Yes
	LR	ENV1
	KR	Yes
	ABS	Yes
	BV	EC33B, Temperature: 5 - 55°C, Vibration: 4 g, EMC: Bridge and open deck
Real-time Clock	Retention Time	At least 300 hours, typical value is 1000 hours at 25°C
	Resolution	1 s
	Accuracy (at 25°C)	-18 to 28 ppm
Floating-point Unit (FPU)	Existence	Yes
Residual Variable Storage	Storage Method	32 kB FRAM
	Retention Time	> 10 years
Shortest Task Class Cycle Time	0.8 ms
Typical Instruction Cycle Time	0.0145 µs
Electrical Characteristics	Electrical Isolation	Ethernet (IF2) and POWERLINK (IF3) are isolated from each other, other interfaces and PLC; Isolation of X2X (IF6) from other interfaces and PLC: Yes when using X20PS9600, No when using X20PS9602; USB (IF4, IF5) are not isolated from each other and PLC
Operating Conditions	Installation Orientation	Horizontal: Yes; Vertical: Yes
	Installation Altitude	0 to 2000 m: No limitation; > 2000 m: Ambient temperature decreases by 0.5°C per 100 m increase in altitude
	Protection Level (EN 60529)	IP20
Environmental Conditions	Operating Temperature (Horizontal Installation)	-25 to 60°C
	Operating Temperature (Vertical Installation)	-25 to 50°C (See the derating details in the X20PS960x data sheet)
	Storage Temperature	-40 to 85°C
	Transportation Temperature	-40 to 85°C
	Relative Humidity (Operating)	5 to 95%, no condensation
	Relative Humidity (Storage)	5 to 95%, no condensation
	Relative Humidity (Transportation)	5 to 95%, no condensation
