RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Categories Needle Roller Bearing
Brand Name: SFT
Model Number: RCB 061014
Place of Origin: CHINA
MOQ: 500
Price: 1-50USD/PC
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Delivery Time: 45 days
Packaging Details: neutral
Torque capacity: 4.83Nm
Inner diameter: 9.525mm
Outer diameter: 15.875mm
Type: Needle
Needle Material: GCr15
Thickness: 22.22mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

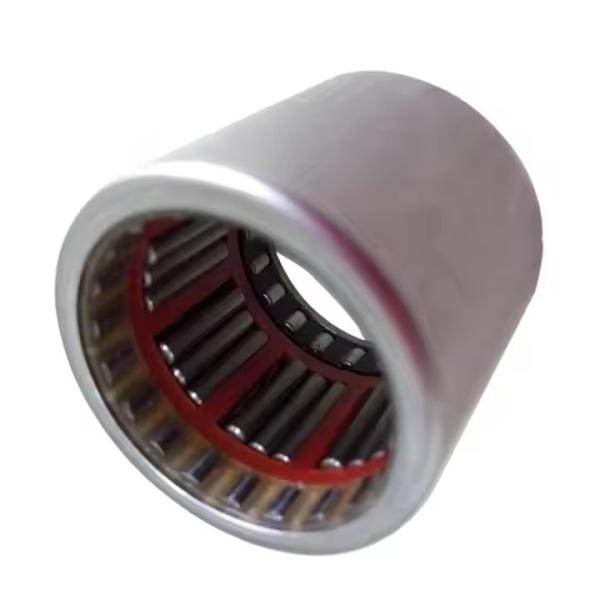

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Product Description

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Features of RC Needle roller bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

Catalogue of RC needle roller bearing for your choice

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Bearing Designation Mass Approx Designation
Fw D C Torque
g mm Nm
RC02 2 3.175 7.15 6.35 0.32
RC040708 3.5 6.35 11.112 12.7 2.03
RC040708-FS 3.5 6.35 11.112 12.7 2.03
RC061008 4.7 9.525 15.875 12.7 5.45
RC061008-FC 4.7 9.525 15.875 12.7 5.45
RC081208 9.2 12.7 19.05 12.7 8.84
RC081208-FS 9.2 12.7 19.05 12.7 8.84
RC101410 14.5 15.875 22.225 15.88 16.9
RC101410-FC 14.5 15.875 22.225 15.88 16.9
RC121610 16.2 19.05 25.4 15.88 23.3
RC121610-FS 16.2 19.05 25.4 15.88 23.3
RC162110 17 25.4 33.338 15.88 49.6
RC162110-FC 17 25.4 33.338 15.88 49.6
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99 45
  • High Precision and Quality: The RCB061014 bearing is designed with a precision rating of P0, ensuring high accuracy and reliability in various applications.
  • Wide Range of Industries: This bearing is suitable for various industries, including manufacturing plants, machinery repair shops, retail, printing shops, construction works, and energy & mining, catering to diverse user needs.
  • Long-lasting Torque Capacity: With a torque capacity of 4.83nm, this bearing can withstand heavy loads and provide consistent performance.
  • Quick Delivery: We offer fast delivery times, with 1 day for sample orders and 5-7 days for bulk orders, ensuring timely receipt of the product.
  • Economical and Compact Design: The bearing's compact size (9.525mm inner diameter, 15.875mm outer diameter, and 22.22mm thickness) and lightweight (12g) make it an economical choice for various applications.
