| Categories | GATE VALVE |
|---|---|
| Brand Name: | PVPT |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | EXW FOB CFR CIF |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 30 days after receiving the down payment |
| Packaging Details: | wooden case, pallet or as per customer request |
| Pressure: | 125LB |
| Size: | 2'' and 4'' |

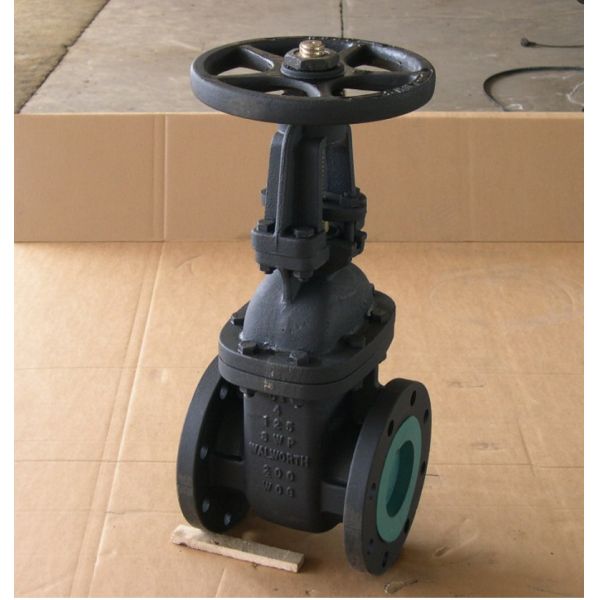

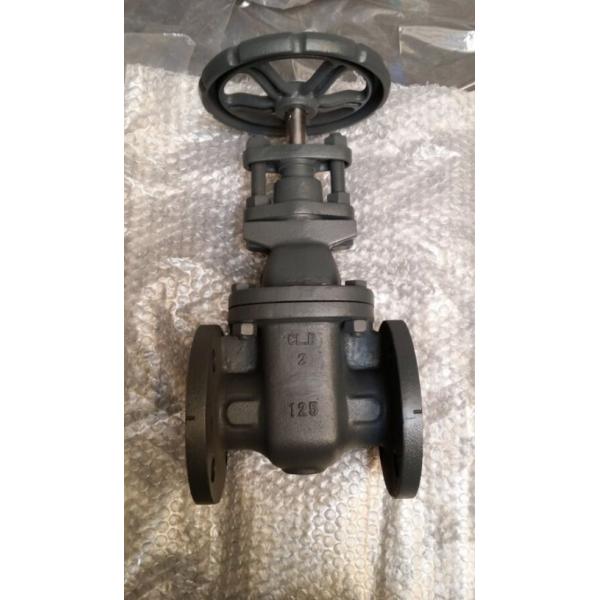

2 inch and 4 inch 125LB cast iron gate valve
Specifications
1.Size :2” and 4''
2.Pressure :125LB
3.Design standard:MSS SP-70
4.Face to face:ANSI B16.10
5.Flange standard:ANSI B16.5
6.Test standard:MSS SP-70,API 598
7.Body:ASTM A126B
8.Bonnet:ASTM A126B
9.Stem:2Cr13/SS304/SS316/Carbon Steel
10.Stem nut:brass
11.Seat:Bronze B62/Brass
12.Disc:ASTM A126B
13.Handwheel:ASTM A536 65-45-12
14.Gasket:Graphite
