Ericsson Optical Fiber Cable Fullaxs LC-LC With Grounding Wire

Categories Materials for Ericsson
Brand Name: OEM/ODM
Model Number: RPM 253 1619/50M or RPM 253 1619/100M
Certification: CE, RoHS
Place of Origin: China
MOQ: 10 pcs
Price: sales@sogootelecom.com
Payment Terms: Paypal,T/T, Western union
Supply Ability: 100000 pcs per week
Delivery Time: 3-20 days depends on quantity
Packaging Details: PP bag+ paper carton
Product Name: RPM 253 1619 50m 100m fiber cable
Key Words: RPM 253 1619
Application: Ericsson Optical Fiber Cable
Size: 5mm Dia
Length: 50~100m
Connector: 1F LC-LC SM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

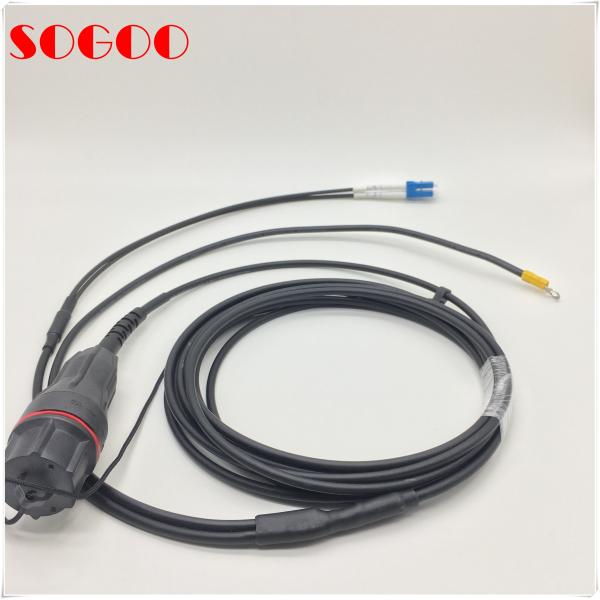

Ericsson Optical Fiber Cable Fullaxs LC-LC With Grounding Wire

Ericsson Optical Fiber Cable Fullaxs LC-LC With Grounding Wire

The optical cable are designed in such a way that it can be grounded with a metal platter with a ground wire of length of at least 600 mm. The connection of the ground wire with a metal splitter of the optical cable should be approx. 1 meter before the FullAXS connector. The ground wire must be terminated with a M8 cable shoe with at least one fixing bore. An example of the desired design is shown in the figure below.


Nb.Technical requirements for optical cable (attach prove documents):
1.Optical and transmission measurements (IEC 60793 -1)
2.Tensil strenght must be in accordance to IEC 60794-1
→ long-term F=300N, shotr-term F=450 N
3.Crush test must be in accordance to IEC 60794-1 E3
→ long-term F=3000N/100mm, short-term F=5000N/100mm
4.Repeated bending (mm) dynamic 20xd, static 10xd (d=diameter - cable diameter)
5.Connector type - LC/PC singlemode, Duplex konektor
6.Fibre type - singlemode 9/125 μm, standard SM G.657A1
7.Insertion loss 0,3 dB
8.Return loss >50 dB typical
9.Cable sheath should be self-adhesive (extinguished) and free from substances that cause halogen gases (LSOH),
10.Connector 1 na BBU site - LC/UPC duplex,
11.Connector 2 na RRU site – LC/UPC duplex, housing FullAXS with protection cap, protection IP 65
12.Maximum pulling force must be at least: 300 N
13.Temperature range: -40oC to +85oC
Optical connectors or connection optical cables must be in accordance (attach prove documents):
14.§ IEC 61754 - Mechanical Interface Standards
15.§ IEC 61753 - Performance Standards
16.§ IEC 61300 - Test / Measurement Proced
17.§ IEC 61755 - Optical Interface




ItemSpecifications
Connector AFULLAXS Duplex LC, Straight boot
Connector BDuplex LC, Straight boot
Grounding cableGrounding cable on side B, Length 1.2m
Fiber amount2 cores
Fiber typeSingle mode 9/125um G.657A1
Optical Cable Attenuation at 1310nm0.4dB/km
Optical Cable Attenuation at 1550nm0.3dB/km
IL/Connector0.3dB IEC 61300-3-4
Return Loss/Connector>50dB IEC 61300-3-6
Operation Temperature Range-20-70
Storage Temperature Range-20-85
Tensile strength350 N maximum
Bending radius180nm minimum
Crush Resistance1500 N/100 mm
Outer sheathPE, full cable armored
Cable sheath colorBlack
Cable OD5mm +/-0.2mm
Fan out3.0mm armored tube, Black color

PACKAGING:

Standard export carton box or custom made box as customer requested
SHIPPING :
Door to Door service:DHL,TNT,Fedex,UPS International EXPRESS 3-5 working days
Airport to Airport:By Air(Customer need contact local logistic company for custom clearance)
Seaport to Seaport: for large quantity order


FAQ
1. Question: What is your minimum order quantity?
Answer: Any trial order in small quantity is welcome.
2. Question: Does your company accept sample orders?
Answer: Yes. Send us your drawings . The products can be customized according to your requirements.
3. Question: What payment terms do you accept?
Answer: T/T, Union Western and Paypal
4. Question: Which mean of delivery your company supports?
Answer: We support express delivery, air transportation , railway transportation and sea transportation.
